Tire Rubber Recycle System/Rubber Powder Grinding Machine
| US$28,000.00-98,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
400/450/560
Voltage
380V
Structure
Vertical
Type
Tire Machinery
Type of General Rubber Machinery
Rubber Cutter
Type of Tire Machinery
Tire Shaping and Curing Press
Machine Type
Semi-Auto Rubber Powder Production Line
Application
Rubber and Plastic
Capacity
500kg/H,1000kg/H
Cooling Type
Water Cooling System
Final Product
Rubber Powder and Granules
After-Sale Service
Engineer Overseas Available
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year
Product Description

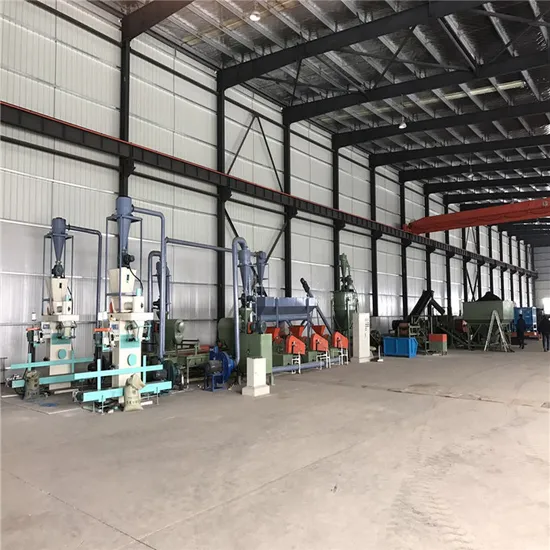

Tire Rubber Recycle System/Rubber Powder Grinding Machine1.Main working process
2.The production line including the following machines
| No. | Item | Model | Quantity |
| 1 | Ring cutter | QQJ-20 | 1 set |
| 2 | Strip cutter | QTJ-380 | 1 set |
| 3 | Block cutter | QKJ-45 | 1 set |
| 4 | Loop machine | YQJ-285 | 1 set |
| 5 | Conveyor equipment | BSJ-1100, XSJ-600 | 2 sets |
| *6 | Rubber crusher | XKP400/XKP450/XKP560 | 1 set |
| 7 | Magnet separator | BCX-2, XCX-1 | 2 sets |
| 8 | vibrating screen | BS-8, XS-4 | 2 sets |
| *9 | Fiber separator | XFJ-1100 | 1 set |
| 10 | Rubber grinder | XMF-270/330/420 | 1 set |
3.Tyre ring cutter
4.Tyre strip cutter
5.Tyre block cutter
6.Steel wire separator
7. Tyre crusher
| Type | XKP-400 | XKP-450 | XKP-560 |
| Front roll diameter(mm) | 400 | 450 | 560 |
| Rear roll diameter (mm) | 400(grove roller) | 450 (grove roller) | 510 (grove roller) |
| Working length of rolls(mm) | 600 | 650 | 800 |
| Front roll surface speed(m/min) | 17.32 | 23.2 | 25.56 |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| Max.nip(mm) | 8 | 8 | 15 |
| Production capacity(kg/h) | 200-300 | 600-800 | -1500 |
| Motor power(kw) | 45 | 55 | 75 |
| Overall dimension(mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight(kg) | 7000 | 12000 | 18000 |
