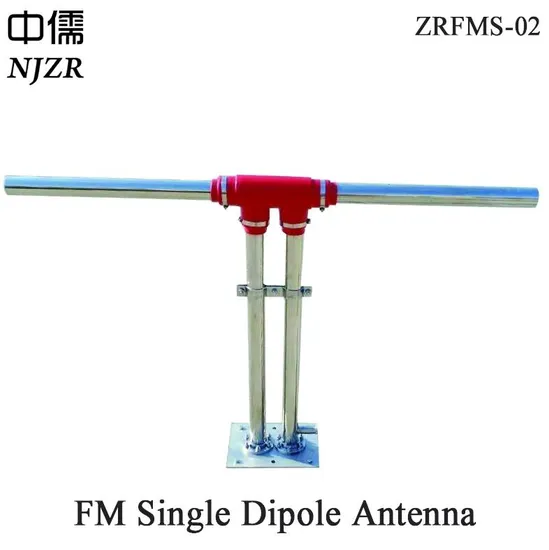

China Factory 200W Stainless Steel FM Single-Dipole Antenna for Television Transmitting Equipment
| US$690.63-2,762.51 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZRFMS-02
Certification
ISO
Condition
New
Frequency Range
87MHz-108MHz
Polarization
Double Polarization
Gain
7.5dB
Vswr
≤1.10
Power Capacity
≥3.5kw(Unit Board)
System Power Capacity
200W
Impedance, Ohms
50Ω
Weight
85kg(Four Antennas and a Unit Board)
Machine Dimension (L/H)
1445*1082(mm)
Rated Wind Velocity
240km/H
Antenna Material
High Quality 304 Stainless Steel
Waterproof Sealing Material
703 Silicone, Autolysis Waterproof Plaster, Tape
Warranty Period
1 Year
Transport Package
Export Packing Box
Specification
ZRFMS-02
Trademark
NJZR
Origin
China
HS Code
8525500000
Production Capacity
1000 Sets Per Month
Product Description
Packaging & Delivery| Package Size | 1600*1200*500(mm) |
| Package Gross Weight | 20.000kg |
Model | ZRFMS-01 | ZRFMS-02 | ZRFMS-03 | ZRFMS-04 |
System Power capacity | 100W | 200W | 300W | 500W |
Frequency Range | 87MHZ-108MHZ | 87MHZ-108MHZ | 87MHZ-108MHZ | 87MHZ-108MHZ |
Polarization | Double Polarization | Double Polarization | Double Polarization | Double Polarization |
Gain | 7.5dB | 7.5dB | 7.5dB | 7.5dB |
VSWR | ≤1.10 | ≤1.10 | ≤1.10 | ≤1.10 |
Power Capacity | ≥3.5KW(Unit Board) | ≥3.5KW(Unit Board) | ≥3.5KW(Unit Board) | ≥3.5KW(Unit Board) |
Impedance, Ohms | 50Ω | 50Ω | 50Ω | 50Ω |
Weight | 85kg(Four Antennas and a Unit Board) | 85kg(Four Antennas and a Unit Board) | 85kg(Four Antennas and a Unit Board) | 85kg(Four Antennas and a Unit Board) |
Machine Dimension (L/H) | 1445*1082(mm) | 1445*1082(mm) | 1445*1082(mm) | 1445*1082(mm) |
Rated Wind Velocity | 240km/h | 240km/h | 240km/h | 240km/h |
Antenna Material | High Quality 304 Stainless Steel | High Quality 304 Stainless Steel | High Quality 304 Stainless Steel | High Quality 304 Stainless Steel |
Waterproof Sealing Material | 703 Silicone, Autolysis Waterproof Plaster, PVC Tape | 703 Silicone, Autolysis Waterproof Plaster, PVC Tape | 703 Silicone, Autolysis Waterproof Plaster, PVC Tape | 703 Silicone, Autolysis Waterproof Plaster, PVC Tape |
