Advanced Mini CNC Milling Machine, State-of-The-Art Machine CNC (BL-V8/V11)
| US$39,000.00-42,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-V8/V11
Type
Worktable Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1000×550mm;1200(1300)×600mm
X/Y/Z Axes Travel
800/550/550, 1100/600/600mm
Table Max. Loading
700/900kg
Spindle Nose
Bt40
Spindle Motor
7.5/11;11/15kw
Spindle Speed
8000/10000/12000rpm
Tool Magazine
24t Arm Type
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
Transport Package
Woode Case
Specification
800/550/550mm; 1100/600/600mm
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

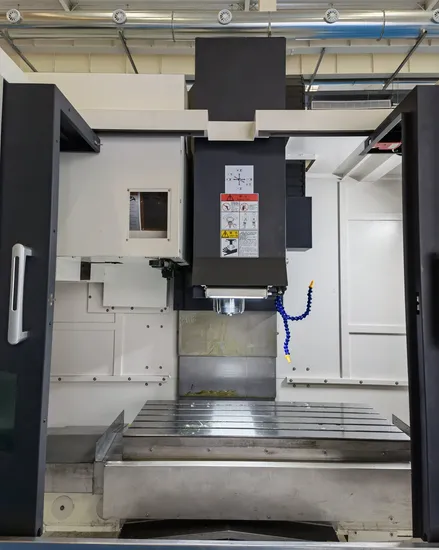

CNC Machining Center/CNC Milling Machine/Milling Machine(BL-V8/V11)-3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting
- Whole production process accord to TAIWAN standard
- Most parts adopt GERMAN/JAPAN/TAIWAN brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V8 | BL-V11 |
| Worktable | Table size | mm | 1000×550 | 1200(1300*)×600 |
| T slot(NO./width/gap) | mm | 5/18/90 | 5/18/100 | |
| Table max. loading | kg | 700 | 900 | |
| Travel | X/Y/Z axes travel | mm | 800/550/550 | 1100/600/600 |
| Spindle | Distance from spindle nose to table surface | mm | 120~670 | 120~720 |
| Distance from spindle center to column face | mm | 600 | 650 | |
| Spindle type | / | BT40 | ||
| Spindle motor | kw | 7.5/11; 11/15(opt.) | 11/15 | |
| Spindle speed | rpm | 8000(option:10000 belt-drive;12000/15000 direct-drive) | ||
| Feeding axes | X/Y/Z axes linear guideway width | mm | 35/45/45(ROLLER type) Z axes 6pcs slide blocks | 45/45/45(ROLLER type) X,Z axes 6pcs slide blocks |
| X/Y/Z axes max. rapid moving speed | m/min | 48/48/48 | 36/36/36 | |
| X/Y/Z axes ball screw dia./pitch | mm | 40/16 | 40/12 | |
| X/Y/Z axes motor torque | Nm | 22/22/22 | ||
| Precision | Positioning precision | mm | ±0.005 | |
| Repeatable positioning precision | mm | ±0.003 | ||
| Tool magazine | Tool magazine type | / | 24T Arm type | |
| Max. tool weight | kg | 7 | 8 | |
| Max. tool length | mm | 280 | ||
| Max. tool dia.(fully loaded) | mm | 80 | ||
| Max. tool dia.(no adjacent) | mm | 110 | ||
| Tool changing time | / | Tool to tool: 1.8s | Tool to tool: 2s | |
| Others | Overall Size | mm | 2500×2200×2500 | 2900×2300×2600 |
| Weight | kg | 5500 | 7200 | |
Main parts brand:
| Item | Brand |
| Spindle bearing | JAPAN-NSK/GERMANY-FAG |
| Ball screw bearing | JAPAN-NACHI/GERMANY-FAG |
| Linear guideway | TAIWAN-HIWIN,PMI/GERMANY-REXROTH |
| Ball screw | TAIWAN-HIWIN/PMI |
| Shaft coupler | JAPAN-NBK/MIKI PULLEY |
| Spindle | TAIWAN-KENTURN/VYU CHENG |
| Tool magazine | TAIWAN-DEX |
| Booster cylinder | TAIWAN-CHEN SOUND |
| Pnuematic parts | TAIWAN-MINDMAN |
| Lubrication pump | JAPAN-LUBE |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration:
-FANUC 0i MF CNC Controller
-24T Arm type tool magazine
Optional configuration:
-SIEMENS 828D CNC controller
-Chip conveyor
-Coolant through spindle
-Tool setting probe
-4th axes
-5th axes
