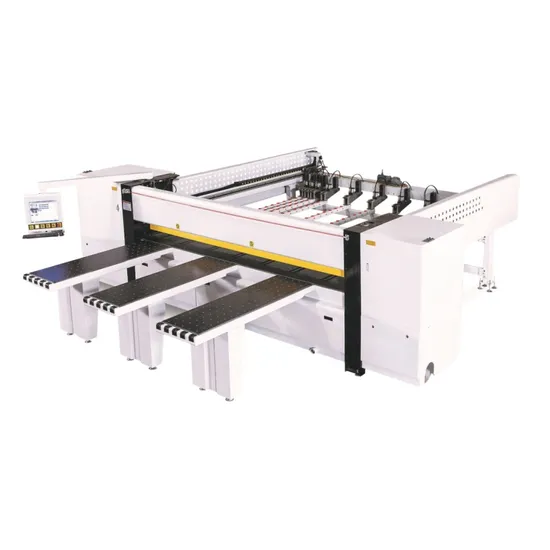

Hc2700 Woodworking Machinery Wood Saw Machine CNC Beam Panel Saw

Product Description

Product Description

1. Technical parameter
Model	HC2700 /HC3300/HC3800
Voltage	380V, 50Hz, 3 phases
Max. Cutting length	2680mm/3250mm/3750mm
Max. Height of blade	100mm
Diameter of main saw	Φ400mm
Main saw spindle	Φ75mm
Diameter of scoring saw	Φ200mm
Scoring saw spindle	Φ50
Saw socket cutting speed	0-80m/min
Saw socket backward speed	0-100m/min
Motor power of main saw shaft	15KW/15kw/18kw
Motor power of scoring saw shaft	2.2KW
Saw carrier servo control	1.3kw Vigorous servo
Feeding servo motor	1.3kw Vigorous servo
High press fan	2.2kw
Automatic feeding speed	0-90m/min
Working table height	920mm
Working air pressure	0.6-0.8Mpa
Total power	22kw/22kw/25kw
Net weight	About 5000kgs/5500kgs/5700kgs
2. Configurations
Control system	IPC + PLC
Saw carrier servo motor	Inovance
Feeding servo motor	Inovance
Operating screen	17" IPC
Main saw motor	Pengfa
Scoring saw motor	Pengfa
Electric components	Schneider
Automatic feeding rack	KH
Saw carrier travel method	Rack and gear
Saw carrier frame	Whole set structure
Pneumatic components	Taiwan AirTac
Precise rail	TBI
High performance electric ruler	German SIKO
Control way	Full closed loop automatic compensation control
Working table quantity and height	3 pcs of 1.85m air floating bead tables. 920mm height

Detailed Photos

Operating screen. Easy for learning and operating

The guide rail is installed parallel to the outside, no dust, and the operation is fast and stable

Double claw manipulator (front aluminum plate). Small material is more stable, and the feed wheel has double bearings (heavy load). Heavy-duty hardened gear reducer, wide manipulator beam

Homag design saw shaft, separate structure of big and small saws, overall trolley

Lengthened air floating table.

The empty position of the rack is 100mm above the ground, which is quite easy to clean

Related Product:
Welcome to contact us for Best Price and Full Details.
Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.Our CE Certifications
10.Our Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
