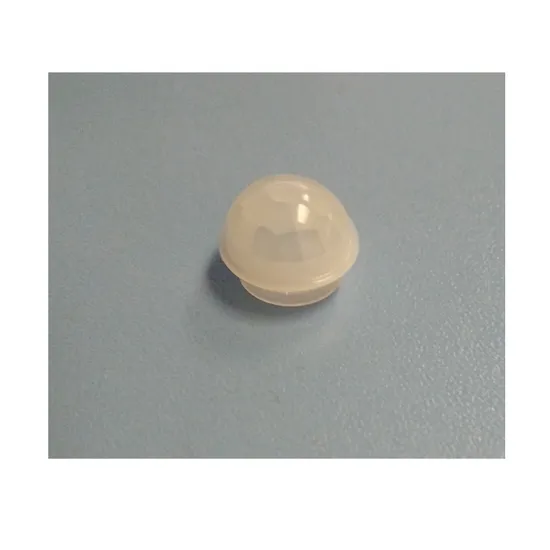

Optical Usage Dome Shaped PIR Sensor Fresnel Lens (HW-8120-4)

Product Description

Optical Usage Dome Shaped PIR Sensor Fresnel Lens(HW8120-4)
Specification

Model	HW8120-4
Material	HDPE
Diameter	12.7mm
Focus Length	6mm
Angle	120 degree
Distance	7m
Shape	laminated lenses
Color	white and black
Package	250 pieces in a poly bag
Production Capacity	100000/Week
Customized	available
Free Sample	available

Feature
1.Designed for passive infrared sensor applications 2. Easy to cut; high compatibility , low cost and environment 3.Can be used in applications including security system, lighting controls and environmental controls 4.Optimized for dual element pyroelectric devices 5.White light immunity can reduce false triggers 6.UV resistant for outdoor applications 7.Designed for uniform sensitivity to reduce electronic gain
Function The Fresnel lens has two functions as follows
1. The focusing action, soon hotly releases the infrared signal refraction (reflection) on PIR,
2. Fresnel lens divides the search coverage into detection area and non-detection area. PIR can generate pyroelectric infrared sinal when moving object enters the detection area making the change of temperature.
Welcome to ask me for the update pir lens catalogue.
About Haiwang Sensor:
Shenzhen haiwang sensor co., ltd is in line of pir item for more than 10 years.Pir lens, pir sensor, pir ic and pir module can be offered.Free samples for testing is available for us.Also custom lens is ok for us.Just offer us the drawing.Philips is our current client for customed lens.
Welcome to ask for inquiry.
