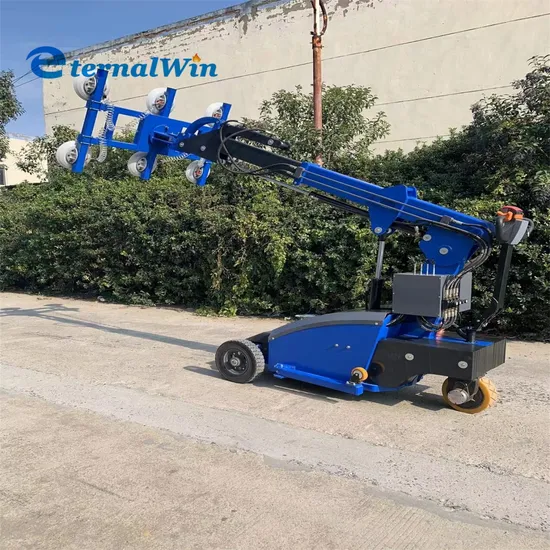

300 to 600 Kg Durable Use Glass Lifting Machinery Installation Robot Vacuum Glass Lifter

Product Description

Product Description
Glass lift equip vacuum lifter is made up of two control systems (i.e., the suckers are arranged in two rows), The finished product type of sucker (the arrangement of the type of a sucker) controls the car's elevation and the turning of glass, marble and other planar goods. When operating, it can absorb and lift the flipped plate by controlling the sucker. It has the functions of walking before and after electric power, electric hydraulic lifting, suction and suction guarantee system, electric flip and so on.

Detailed Photos
Advantages
1 Double system control, one vacuum system for working, and one for alternate;
2 Adopt Anercan THOMAS vacum pump, ltaly METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery, during the use, without air source or power supply. It can achieve electric walking, lifting, lowering,
taking and releasing air by electrical. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal
side.
3 Withe Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation if the
equipment.
4 With vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety time, safer to use.
5 Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction equipped with a separate control valve, can handle glass of different shapes and sizes.

Product Parameters

Glass installation robot		RYG
Rated load capacity	Kg	300	350	400	500	600
Manual rotation Angle	°	360	360	360	360	360
Maximum lifting height	mm	3500	3500	3500	3500	3500
Mode of operation	/	Walking type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
Charger	V/A	24/12	24/12	24/15	24/18	24/18
Driving motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
Lifting motor	V/W	24/2000	24/2000	24/2000	24/2200	24/2200
Overall width	mm	810	810	810	810	810
Overall length	mm	2660	2660	2660	2800	2800
Driving wheel dimensions	mm	250*80	250*80	250*80	300*100	300*100
Suction cup size	mm	300	300	300	300	300
Glass size	mm	3660*2440	3660*2440	3660*2440	3660*2440	3660*2440
