High Speed Paper Straw Machine
| US$5,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
50
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
0-40m/Min
Wall Thickness of Paper Tube
2mm
Certification
CE
Condition
New
Winding Type
Three Head Two Belts
Cutting System
Numerical and Multi-Blades
PLC
Delta, Taiwan
Servo Motor
Yaskawa, Japan
Inverter
Delta, Taiwan
Touch Screen
Taiwan
Voltage
3p, 380V, 50Hz
Weight
1300kgs
Dimension
3500*1500*1200mm
Power
3kw
Transport Package
as Requested
Specification
50
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year
Product Description

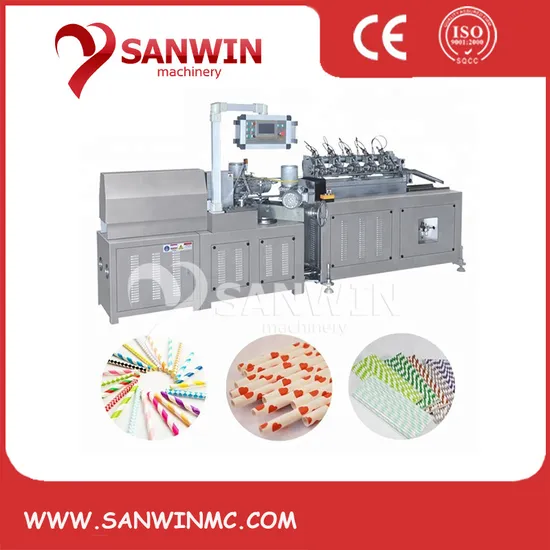

Multi Cutters High Speed Paper Drinking Straw Making MachineDescriptions:
SWXG-50 Multi-blades paper drinking straw making machine equipped with Numerical and Multi-blades Cutting System. This machine is specially used for producing all kinds of paper drinking straws.
--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS. Winding and cutting can be finished in one time.
Technical Parameter:
| Technical Parameter | Control System | ||
| Paper Layer | 2-5 layers | Motor | 3.0kw |
| Inner Diameter | 5-12mm | PLC | Xinjie |
| Wall Thickness | 0.5-2mm | Operating Panel | Xinjie |
| Winding Speed | 0-30 meters/min | Inverter | 3.7kw Delta |
| Winding Nose | Two noses single belt | Execute Components | CHNT |
| Length fixing | Encoder | Signal Components | Hugong |
| Speed Control | By Inverter | Pneumatic Components | Jingwei |
| Cutting System | Numerical Multi-blades (standard 5 pcs) | Electric Components | CHNT |
| Synchronism tracking cutting system | Servo motor synchronism tracking | Bearing | Haerbin |
| Servo Motor | Yaskawa | ||
| Gluing Way | Single/Double sides | Screw Rod | Shangyin |
| Operator | 1-2 person | Slider | Shangyin |
| Working Air Pressure | 0.6Mpa | Configuration | |
| Power Supply | 380V/3Phase/50Hz | Paper Reel Stand | 5 Layers Cross Type |
| | | Gluing Unit | 5 Layers Spraying Type |
| Measurement & Weight | Belt | 2 Pieces | |
| Measurement | 3500*1500*1200mm | Mandrel Shaft | 2 Pieces |
| Working Space | 7000*5000mm | Extra blades | 3 Pieces |
| Weight | 1000kgs | Useful Tool | 1 Set |
-Paper Reel Stand+Glue Unit+CNC Multi-knives Cutting System+L type collector
-Paper Drinking Straws(Finished Products)
Bending Paper Straw
Our Workshop
Packaging & Shipping
Our Customer
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:http://sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
