Mounted Onion Harvester/Moving Peanut Picking Machine/Groundnut Combine Harvesting Machine Potato Harvester

Product Description

Product Description

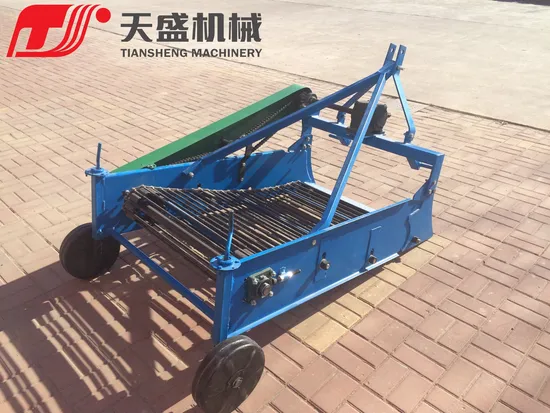

Agricultural machinery Tractor PTO Driven one row potato harvester

Agricultural machinery potato harvester for BOMR tractor is specially designed by Yucheng Hengshing Machinery Co.,Ltd. which is the farm machineries supplier for Shifeng, SJH, BOMR, ShuHe, DF, LOVO, JM, YTO, TS, WU ZHENG, TN, DONG QI. It is mounted with the tractor of 12-60hp with back power and side power output shaft. Our tractor potato harvester is intended for potato excavation , tubers partial separation from the soil and tubers laying on field surface for their further picking up. A triangular beater is set on the potato harvester. The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back. Advantages: 1) It is a tractor mounted potato harvester for 20-80hp tractor. 2) Dig the potatoes safely without cutting or damaging single potato. 3) Not to affect the next crop's growth. 4) Driven by PTO in rotating speed 540r/min.Technical parameter:

Model	Unit	4U-1	4U-2(0.9type)	4U-2(1.3type)	4U-2(type)
Harvesting rows		1	2	2	2
Working width	mm	600	900	1300	1500
PTO PTO shaft spline		6 spline
Total weight	kg	170	260	390	420
Matched power	hp	20-25	25-30	50-60	70-90
Linkage		Three-point suspension type	Three-point suspension type	Three-point suspension type	Three-point suspension type

Detailed Photos
Company Profile

Certifications
Company events and honor
Our Advantages
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
