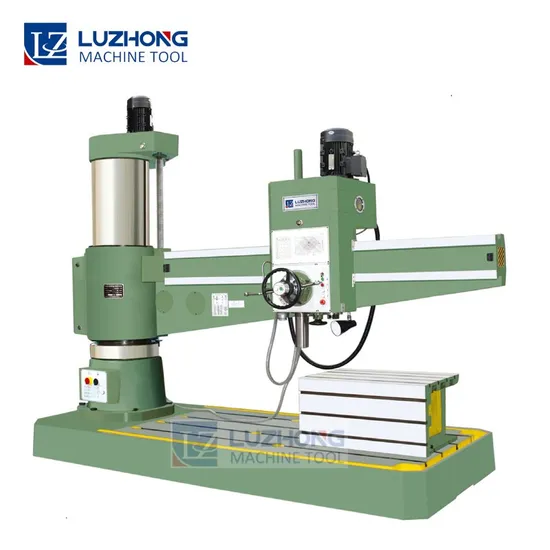

China heavy duty Z30100*31 radial drilling machine for sale

Product Description

China heavy duty Z30100*31 radial drilling machine for sale
Product Description

Product Parameters
Product description:
Hydraulic clamping
Hydraulic tansmission
Hydraulic pre-selection
Electricity machinery double insurance
Product main technical specifications:

specifications	Z30100x31
Max. drilling diameter(mm)	100
Distance between spindle axis and column surface(mm)	570-3150
Distance form spindle nose to table surface(mm)	750-2500
Spindle travel(mm)	500
Spindle taper	NO.6
Spindle speeds range(r/min)	8-1000
Spindle speed step	22
Spindle feeding range(r/min)	0.06-3.2
Spindle feeding step	16
Table size(mm)	1250X800X630
Headstock level migration distance(mm)	2580
Max.torque spindle(mm)	2450
Spindle motor power(kw)	15
Racking shaft heave height(mm)	1250
N.W./G.W.	20000kg
Overall dimensions(L*W*H)	4660×1630×4525mm

Detailed Photos

Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
