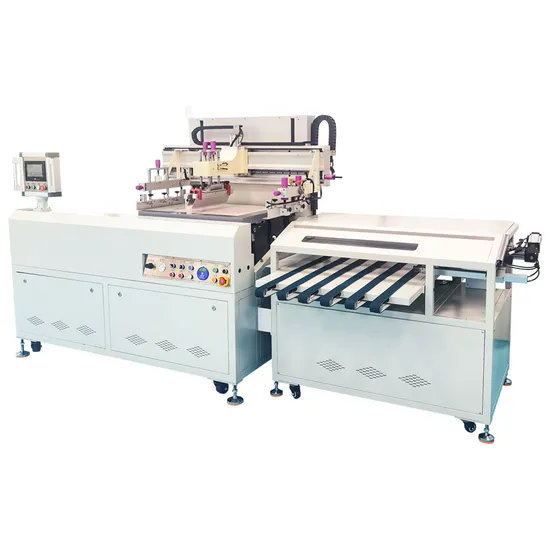

Automatic Screen Printing Machine for Transfer Film/Transfer Paper

Product Description

Product Description Application:
It is suitable for printing on the adhesive, credit card, ceramic paper, film switch, heat transfer film, textile transfer,hot stamping and other products.
It is also suitable for printing gold and silver card paper, metal sheet, PVC and other products with high precision.

Technical Parameter:
Max.printing size		500*700mm
Max.screen frame size		800*1200mm
Printing speed		600-800 pieces/hr
Collecting height		600mm
Printing product's thickness		0.1-5mm
Printing precision		±0.05mm
Vacuum area		520*720mm
Air source pressure		0.5-0.8Mpa
Power		380v
Machine outside dimension		L*W*H 3600*1600*1900mm

Function: 1) The platform side lift adopts the frequency conversion electric type, and the left and right movements of the printing head adopt the servo motor drive.
2) PLC control circuit, printing and screen frame lifting adopt independent drive, servo motor control printing.
3) Pneumatic control squeegee lift, servo digital control stroke, independent adjustment.
4) Setting three modes of manual / semi-automatic / full-automatic, and printing indirect time digital control is adopted.
5) Independent design of the printing arm lifting device, squeegee/flood bar, screen frame loading and unloading and screen frame cleaning convenient.
6) The left and right screen plates are clamped with pneumatic / mechanical fixation, and the plate distance adjustment device is installed at the same time.
The x-axis and y-axis are adjusted independently, which is convenient for adjustment.
7) Servo motor digital control manipulator discharging, stable material transfer, accurate positioning.
8) Large size LCD operation interface, easy to operate. Detailed Photos
With antistatic treatment With dust removal device With suction,auto feeding
Auto unloading system
1 color print
2 color print
