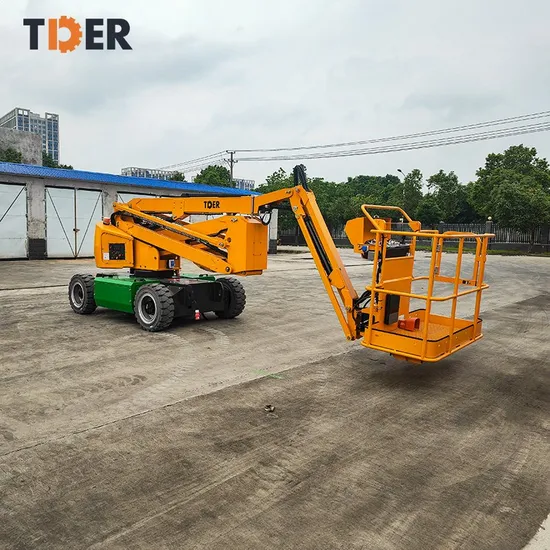

Tder 14m 16m Lifting Equipment Man Lift Aerial Work Platform

Product Description

Product Parameters

Model	ZTQE1416
Maximum working height	15.9m
Maximum platform height	13.9m
Maximum horizontal extension	7.6m
Maximum span distance	7.9m
Length-when retracted	6.58m
Width - stowed	1.76m
Height when closed	1.98m
Platform dimensions (length x width)	1.53m*0.76m*1.1m
Wheelbase	2m
Ground clearance	0.2m
Carrying capacity	230kg
Maximum number of people working on the platform	2
Travelling speed (stowed)	5.1km/h
Travelling speed (lifting)	0.8km/h
Climbing capacity (stowed)	30%
Inner steering radius	0.8m
Outside steering radius	3.5m
Maximum permissible working inclination	4°
Tyre	26*12-16
Power source	6V*8
Drive Steering	2WD*2WS
Operating weight	6800kg

please contact us if you need more parameters
Detailed Photos
- strong load capacity with the max platform occupancy being 230KG.
- Flexible turning ability enables workers to easily reach the right workplaces.
- Excellent off-road performance makes the vehicle go through complex terrains smoothly.
- Complete safety devices and compact Structure.
