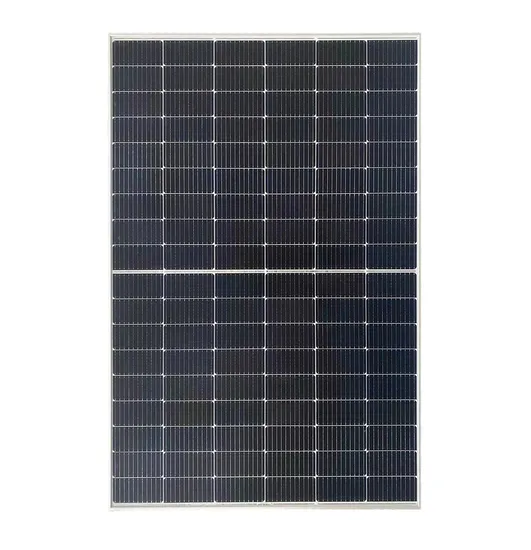

410W 450W 500W 550W 48V 9bb Monocrystalline Photovoltaic Solar Power Panels
| US$0.08-0.09 | 1,000 W (MOQ) |
Basic Info.
Model NO.
FFS-415W
Number of Cells
144
Application
Industrial
Condition
New
Material
Monocrystalline Silicon
Power
440W
Cell
Mono
Voltage
36.20
Weight
24kg
Efficiency
22.50%
Package
2PCS/Carton
Frame
Anodized Aluminium Alloy
Connector/Cross-Section
Junction Box, Top
Front Cover Glass
3.5mm Safety Glass
Solar Cell
High Efficient PV Cell
Transport Package
2PCS/Carton
Specification
FSM-350W-72M
Trademark
Flagsun
Origin
China, Jiangsu
HS Code
8541402000
Production Capacity
100MW/Year
Packaging & Delivery
Package Size
178.00cm * 106.00cm * 4.00cm
Package Gross Weight
19.000kg
Product Description
Product Description| Module Dimensions | 1776*1052*35mm / 2094*1038*35mm |
| Weight | 18.9kg / 23.5kg |
| Junction-Box | IP 67 or IP 68 rated |
| Cables | 4.0mm² |
| Cell Orientation | 12 cells(6*2) |
Temperature Coefficients | Power temperature coefficient (%/ºC): - 0.45 %/ºC Current temperature coefficient(%/ºC): 0.065±0.015 %/ºC Voltage temperature coefficient(%/ºC): - 0.35 %/ºC NOCT-Normal Operating Cell Temperature: 45±2ºC |
| Module Warranty | 25 - year limited warranty of 80% power output; 10 - year limited warranty of 90% power output; 5 - year limited warranty of materials and workmanship |
| Test | Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved |
| Nearest shipment port | Ningbo or Shanghai |
| Electrical Characteristics | |||||||
| Model Number | FSM425M-144C | FSM430M-144C | FSM435M-144C | FSM440M-144C | FSM445M-144C | FSM450M-144C | FSM455M-144C |
| Testing Condition | STC | ||||||
| Maximum Power (Pmax/W) | 425 | 430 | 435 | 440 | 445 | 450 | 455 |
| Open Circuit Voltage (Voc/V) | 48.3 | 48.5 | 48.7 | 48.9 | 49.1 | 49.3 | 49.5 |
| Short Circuit Current (Isc/A) | 11.23 | 11.31 | 11.39 | 11.46 | 11.53 | 11.6 | 11.66 |
| Voltage at Maximum Power (Vmp/V) | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 | 41.5 | 41.7 |
| Current at Maximum Power (Imp/A) | 10.5 | 10.57 | 10.64 | 10.71 | 10.78 | 10.85 | 10.92 |
| Module Efficiency(%) | 19.6 | 19.8 | 20 | 20.2 | 20.5 | 20.7 | 20.9 |
| STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ºC, Spectra at AM1.5 | |||||||
Application
Production process
Company Profile
Exhibition
Certifications
Packaging & Shipping
Our advantage
GRADE A SOLAR CELLS: to ensure all are high efficient grade A solar cells. HIGH QUALITY: fully automated production processes, each solar panel is tested strictly. PRICE ADVANTAGES: good price, low cost as industry chain integration with scale effect. AFTER-SALES ADVANTAGES: 24 hours service on line, timely and fastly solve porblems. FACTORY ADVANTAGES: more than 10 years experience in PV industry, with 25,000 square meters production base. FAQ
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q : Why should you buy from us not from other suppliers?
A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Intenergy modules have been used in residential,
commercial and off-grid systems around the world.
Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.
