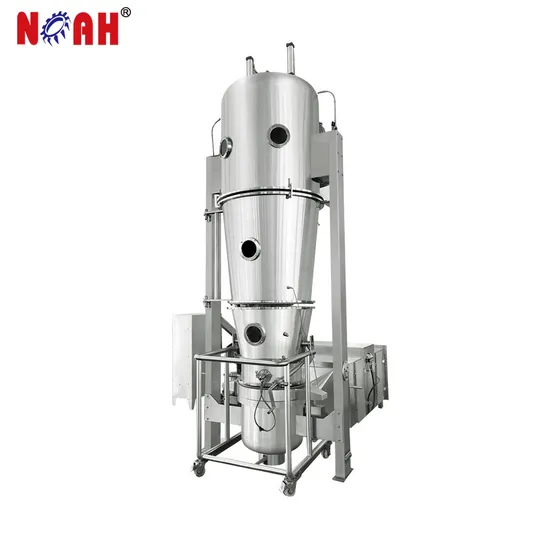

Flg-120 Medical Fluid Bed Dryer Granulator Solid Preparation Granulating Unit

Product Description

Flg-120 Cold Granules Medical Granulator Machine
The solid preparation granulating unit combines wet granulation, the boiling drying granulation and the wet granule regulation scientifically and effectively according to the process characteristics, to form a complete solid preparation production linkage line.
characteristics
PLC intelligent control, high degree of automation, easy operation and maintenance.
Automatic sealing type feeding, unloading system, pipeline connection, clamp type connection, no dead angle, easy to disassemble, easy to clean.
The equipment is designed according to the 2bar pressure standard, and the components of the whole machine have a good grounding method.
The machine body is made of full stainless steel, the part in contact with the material is made of stainless steel.
Scope of application:
1. Tablets, granules (granules), capsules.
2. Low sugar, no sugar, small dose of particles.
3. Slow release granules.
4. Instant food, drink granules.
5. Chemical particle preparation.
Main Technical Parameters:

Machine Name	Specification Item		FL- 120	FL- 200	FL- 300	FL- 500
Fluid-Bed granulator dryer	Capacity	KG/ batch	120	200	300	500
	Container	L	420	670	1000	1500
	Dia	mm	1200	1400	1600	1800
	Power of fan	KW	18.5	22	30	45
	Pressure of steam	Mpa	0.4-0.6
	Consumption of steam	KG/h	140	180	310	400
	Pressure of compressed air	Mpa	0.4-0.6
	Consumption of compressed air	M3/min	0.9	1.1	1.1	1.5
	Working temperature	ºC	Normal temperature-120ºC could adjust
High Efficient Wet Granulator	Model		HLSG100	HLSG200	HLSG300
	Bowl Volume Litre	L	100	200	300
	Max Material Charge Amount kg/batch	KG	40	80	100-130
	Mixing Power	kw	7.5	11	13
	Mixing Speed r/min	r/min	270/180	270/180	160/110
	Net weight	kg	500	850	1200
Integral Unit	Model		Overall Dimensions(LxHxW)(mm)
	FL-120/HLSG-200		4000x2000x4500
	FL-200/HLSG-300		5000x2500x5000
