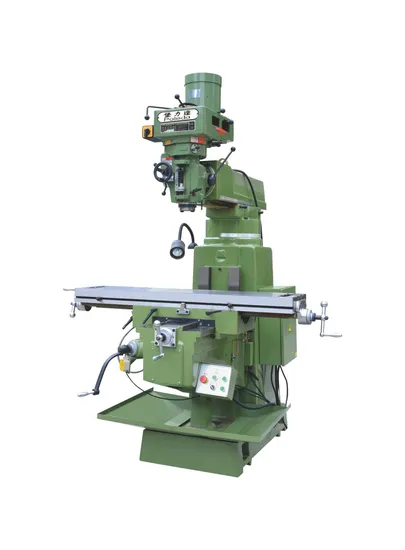

5m High Precision Milling Machine Universal Turret Milling Machine Vertical Universal Arm Type Turret Milling Machine

Product Description

Product Description
Introduction of milling machine
A milling machine is a machine tool that cuts material on Machined part by means of a rotating tool. It is one of the most commonly used machine tools in metal cutting processing, milling machine has the ability to process plane, surface, gear parts, and can drill, reaming, boring and other processes.
Basic structure of milling machine:
The basic structure of the milling machine mainly includes: bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor and so on.
1. Bed: Bed is the basic support part of the milling machine, carrying the various components. The bed is generally cast, with good stability and strong rigidity.
2. Slide table: The slide table is a moving part of the milling machine, which can slide back and forth on the bed. The sliding table is equipped with a workbench and a horizontal shaft, which realizes the positioning and processing of the Machined part by moving the sliding table.
3. Workbench: Workbench is the working platform of the milling machine, which is used to grip and fix the Machined part. The table can be rotated, tilted and other operations as required to complete complex Machined part processing.
Product Parameters
turret milling machine Mechanical characteristics:
★ The casting is made of nanotechnology, with good rigidity, no deformation and good stability.
★ The main shaft is made of chrome-molybdenum alloy, after tempering, heat treatment, grinding, and with precision bearing combination, strong cutting force and excellent precision. ★ Milling head gear box made of cast iron, good rigidity, low deformation, heavier gravity, more accurate cutting, milling head more durable.
★ The screw cap on the three-axis screw is made of advanced phosphorus bronze, wear resistance, long service life.
★xy shaft slide after high wave heat treatment, good wear resistance, increase service life. xy axis interface with imported wear plate (turcite "b") light operation, low wear rate, durable.
★ Equipped with lubrication system, uniform distribution of oil points, to ensure smooth slide.
★ The machine is 100 kg higher than similar products.
★5hp powerful motor with high rigidity and precision bt40 spindle, suitable for large parts and heavy cutting.

Product Name
Product Name	Milling machine
Product model	5M
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	1000MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around 45°
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1800*2500MM
	Approximate machine weight	1680kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, NT40 chuck/Z axis automatic lifting device	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
