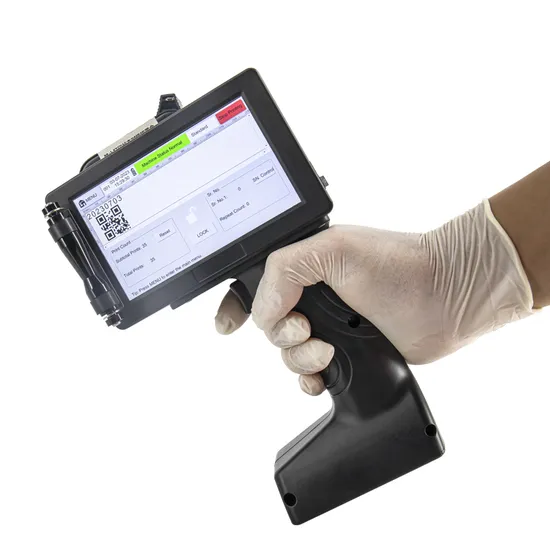

Best Seller Inkjet Printer Docod T130e-H 25.4mm Impresora De Inyeccion De Tinta De Mano Portable Print Date Machine with Pedestal Support
Basic Info.
Model NO.
T130E-H
Type
Thermal Foam Coding Machine
Usage
Daily Industrial
Automatic Grade
Automatic
Principle of Classification
Thermal Inkjet Technolog
Application of Classification
Ink Jet Printer
Working Patterns
Handheld
Supplies
Ink
Packaging
Box
Ink Type
Aqueous / Solvent and 42ml Cartridge CISS
Printing Accuracy
150dpi / 300dpi / 600dpi
Nozzle Type
Thermally Foamable Head Tij2.5
Transport Package
Carton
Specification
230mm*137mm*97mm
Trademark
DOCOD
Origin
China
HS Code
8443393100
Product Description
Product DescriptionBest Seller Inkjet Printer DOCOD T130E-H 25.4MM Impresora De Inyeccion De Tinta De Mano Portable Print Date Machine With Pedestal Support
| Machine Type | T130E handheld code machine |
| Nozzle type | TIJ 2.5 thermal foaming nozzle |
| Nozzle number | 1 |
| Printing accuracy | Maximum: 600DPI * 600DPIVertical optional: 100DPI, 150DPI, 300DPI, 600DPI Horizontal optional: 30-600DPI precision adjustment |
| Printing height | 25.4mm |
| Printing distance | 1-5mm |
| Number of printing lines | Any number of lines can be edited within the effective printing height |
| Printing speed | 406m/min(90DPI), 304m/min(120DPI), 240m/min(150DPI), 120m/min(300DPI), 60m/min(600DPI) |
| Print content | Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database(Additional content can be added as required) |
| Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18 2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417 | |
| Counter | More than 20 independent counters |
| Printing material | Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box |
| Ink type | Food grade, water-based, oily, weak solvent, solvent |
| Ink color | Black, white, red, yellow, blue, green, invisible, UV |
| Operating system | Embedded Linux security operating system |
| display screen | 5 inch color display, industrial touch screen |
| Main hardware | American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip |
| Communication Interface | Charging interface, USB, RS232 |
| External interface | Optical eye, encoder, flip upside down control |
| Nozzle installation | Built-in integrated nozzle |
| Support language | Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.) |
| Power parameters | Input 100-240V AC; output 12.6V DC, 3A (power charger) |
| Battery parameters | 12.6V / 3350mAh lithium battery pack (supports a single removable lithium battery) |
| Machine material | ABS + PC + Metal |
| Machine specifications | 220mm * 140mm * 95mm |
| Working environment | Temperature 0-45 ºC / Humidity 30-70% Rh |
| Related certification | RoHS, CE, FCC |
Anti-counterfeiting trace data printing
Software adjustable, seamless stitching
Calculate printing cost in real time
Wireless keyboard and mouse control
Support WIFI
1.LIGHTWEIGHT ABS BODY
2.HANDHELD ONLINE DUAL USE
3.CALCULATE PRINTING COST IN REAL TIME
4.MULTIPLE SETS OF DYNAMIC DATE PRINTING
5.WIRELESS KEYBOARD AND MOUSE CONTROL
6.MULTIPLE CAPACITY BATTERIES ARE AVAILABLE
Application:
