Woodworking CNC Engraving and Drilling Machine
| US$13,000.00-17,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NA-2030
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle
9kw Hsd Spindle
Controller
Taiwan Syntec Controller
Table
Double Layer PVC Vacuum Table
Rail
Taiwan Rail
Rack
Helical
Motor
Delta Servo Motor
Pump
5.5kw Air Cooling Pump
Transport Package
Plywood Box
Specification
2000mm*3000mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
600 Sets/ Year
Product Description

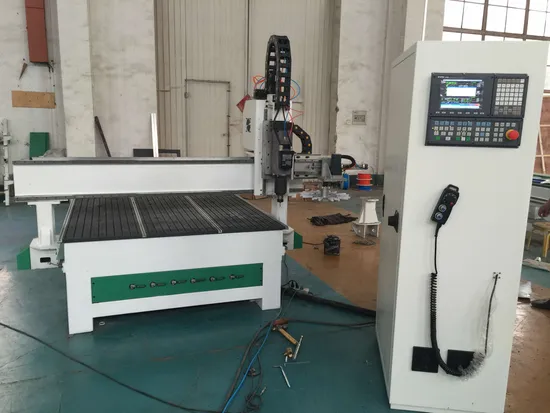

CNC Automatic Tool Changer Machining CenterNA series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.
The standard configuration of NA-2030
| Spindle Power | 9kw HSD / HQD |
| Controller | Taiwan Syntec control system |
| Motor | 750w Japanese Jaskawa servo motor |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | Compact grade vacuum suction table |
| Vacuum Pump | 5.5kw Chinese Becker pump |
| Tool Magazine | ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks |
| Software | Router-8 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | Taiwan PMI |
| Guide Rail | Taiwan AMT |
| Table Size | 1500x3000mm |
| Max. Traveling Size (X/Y/Z) | 1600x3100x200mm |
| Max. Workpiece Height | 150mm |
| Package | plywood box |
| Net Weight | 2500kg |
Upgrade:
Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Aluminum alloy tool magazine
Loading & unloading roller table
floating table
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
