220/380V 3 Phase or 1 Precision Benchtop Univereal Milling Machine

Product Description

Product Description
Hot ! ! ! 50mm vertical universal milling machine fresadora manual universal Fresadora for sale SP2237 Horizontal Vertical Universal Fresadora Milling Drilling Machine Optimum 7550 Hot sales!!! 50mm vertical horizontal universal milling machine fresadora manual universal Fresadora for sale 6350 7550 SP2237 SP2237
Quick Detail:Drill capacity: 50mm
Table size: 800*240mm
Max. Vertical milling dia: 25mm
Spindle taper: MT4/R8/ISO30

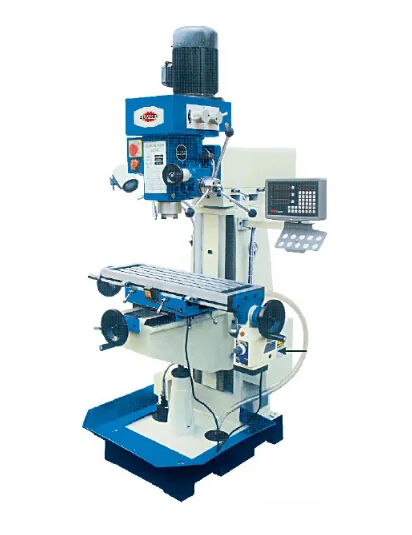

Description:SP2237 universal drilling and milling machine, can be both horizontal milling and vertical milling, features are as below,
1. milling machine(H/V)
2. Vertical milling spindle manual feed
3. X axis mechanical feed
4. Vertical milling head rotate 45 °for right side and left side
5. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
6. Easily shift able gear drive ensures power transmission without losses
7. With V-belt spindle drive and gear spindle drive
8. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Specifications
Model	SP2237
Drilling capacity	50mm
Max. horizontal milling dia	100mm
Max. vertical milling dia	25mm
Max. boring dia	120mm
Max.tapping capacity	M16
Spindle taper	MT4/R8/ISO30
Spindle speed	115-1750rpm
Spindle stroke	120mm
Table size	800x240mm
Table travel	320X230x350mm
Main motor power	0.85/1.5kw
Packing size	1140x1120x2200mm
N.W./G.W.	610/770kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
