Advanced Wood Cutting Machine with Semi-Automatic Beam Saw
Basic Info.
Model NO.
MJ6233
Power Type
Electric
Layout
Horizontal
Controlling Mode
Hydraulic Semi-automatic
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services and Video Services
Target Audience
Wood Working Population, Wholesaler and Retailer
Edition
Latest Edition
Special Service
Optional Upgrade
Character
Thick and Solid
Transport Package
Plywood Cases
Specification
5600*3550*1750mm
Trademark
QDZD
Origin
Qingdao, China
HS Code
84659100
Production Capacity
50 Sets/Month
Product Description

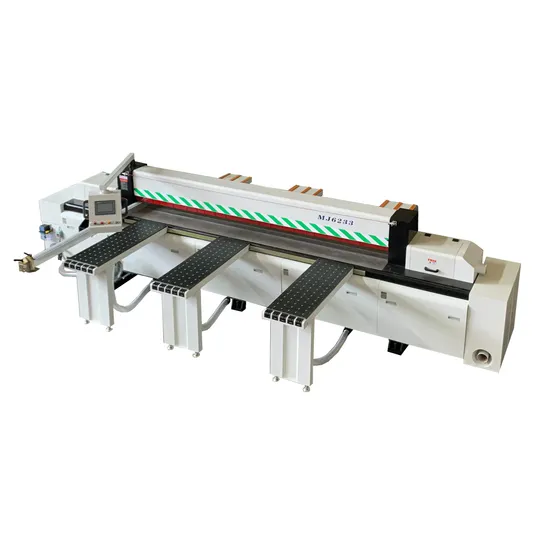

Semi-automatic Beam Saw Big Sawing Machine Woodworking Machinery Wood CuttingMJ6233
Product Parameters
Here are different kinds of beam saw.Details are as followed.
| Model | MJ6226 | MJ6233 |
| Sawing length | 2600mm | 3300mm |
| Main saw spindle speed | 5600rpm | 5600rpm |
| Scoring saw spndle | 8500rpm | 8500rpm |
| Sawing thickness | 70mm | 70mm |
| Dia. Of main saw blade | 355mm | 355mm |
| Axis dia. of main saw blade | 30mm | 30mm |
| Dia. of grooving saw blade | 160mm | 160mm |
| Axis Dia. of scoring saw blade | 25.4mm | 25.4mm |
| Head saw motor | 9kw | 11 kw |
| Grooving saw motor | 1.5kw | 1.5kw |
| Speed variable by inverter | 0-45 m/min | 0-45 m/min |
| Operation pressure | 5-7kg/cm | 5-7kg/cm |
| Workbench height | 950mm | 950mm |
| Net weight | 3000kg | 3200kg |
| Dimensions (L*W*H) | 5200*3550*1750mm | 5600*3550*1750mm |
Detailed Photos
1.Control panel:Touch screen control panel.
2.Taiwan brand guide rail, durable, high precision, and the error within 0.01mm per meter
3.Main saw blade and scoring saw blade are controlled by independently
4.Electric box:High-quality electrical components.
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 15 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
