PLD2016N FINCM Steel Structure Fabrication Steel Plates CNC Drilling Machines

Product Description

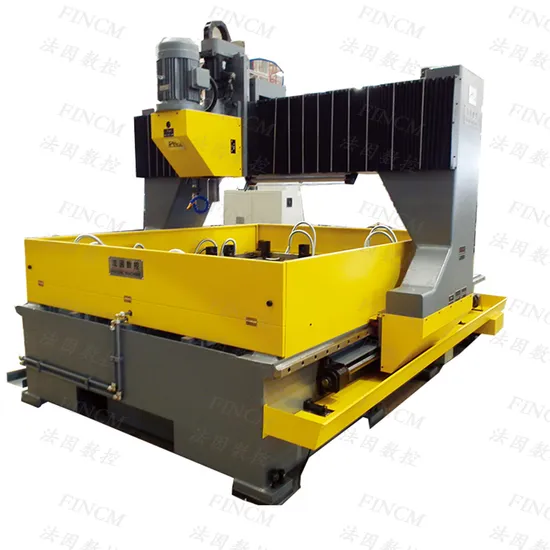

PLD2016N FINCM Steel Structure Fabrication CNC Plate Drilling Machine 2000mm×1600mm (One piece)
Product Description

Product Parameters

Item	Name	Value
Size of workpiece	Thickness of workpiece (mm)	Max 100
	Width×Length (mm)	2000mm×1600mm (One piece)
		1600mm×1000mm (Two pieces)
		1000mm×800mm (Four pieces)
Drilling spindle	Spindle change methd
	Diameter of drilling head	Twist drill ≤Φ50mm
	The mode of speed adjustment	Transducer stepless speed adjustment
	Rotate speed	20-560r/min
	Stroke	180mm
Hydraulic clamping	Thickness of clamping	15-100mm
	Quantity of clamping cylinder(piece)	12 piece
	Clamping force	7.5KN
	Start-up clamping	Foot-switch
Cooling fluid	Mode	Forcing cycle
Hydraulic system	System pressure	6MPa(60kgf/cm2)
	Volume of oil tank	100L
Air pressure	Source of compressed air	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Hydraulic pump	2.2kW
	Chip removal motor	0.75kW
	Cooling pump	0.25kW
	Servo system of X axis	1.5kW
	Servo system of Y axis	1.0kW
Overall dimensions	L×Wx×H(mm)	About 5180×2450×2400mm
Weight(KG)	Main machine	About 4500kg
	Scrap Removal Device	About 800kg
CNC Axis	X,Y(point controling) Z(hydraulic feeding)
Travel	X Axis	2000mm
	Y Axis	1600mm
Maximum Positioning speed	10m/min

Key Outsourced Components List

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China
