Automatic Trapezoid Tape Cutting Machine, Bevel Tape Cutting Machine

Product Description

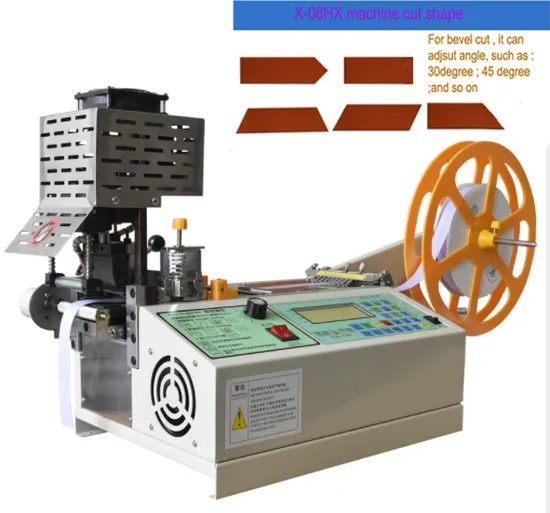

Automatic Trapezoid tape cutting machine, bevel tape cutting machine X-08HX

Cut material


Product Description Features
* High speed: It can cut 100~120 cut per minute. (50mm long)
* Accuracy: Cut-length is accurate cwing to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works autoally only by setting length and quantity
* Automatic stopper: It stops autoally if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
* Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

Specifications
* Available Width: 1 ~ 100mm
* Available Length: 1 ~ 99999mm
* Knife: Cold cutting
* Speed: 120pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 220W
* Measurement & Weight: 48*48*50cm (29kg)
Other model specification

Machine	Automatic Bevel cutting machine
Model :	X-07HX	X-08HX
Type:	Electric	Electric and Pneumatic
Cut Shape:	Straight ; it have elastic feeder, it can cut accurate	It can cut different shape base on your requirement
Cut Width:	0.1---80mm	0.1---100mm
Cut length:	3---99999mm	3---99999mm
Cut Speed :	120pcs/min	200pcs/min
Accuracy:	± 0.1mm	± 0.1mm
Power Supply:	AC220V 50Hz/60HZ 300W	AC220V 50Hz/60HZ 300W
Size & Weight	48*48*50Cm 23KG	48*48*50Cm 29KG
