US$5,860.00
|
1 Piece
(MOQ)
|
Basic Info.
Transport Package
Wooden Box
Production Capacity
500PCS/Year
Packaging & Delivery
Package Size
250.00cm * 150.00cm * 120.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description

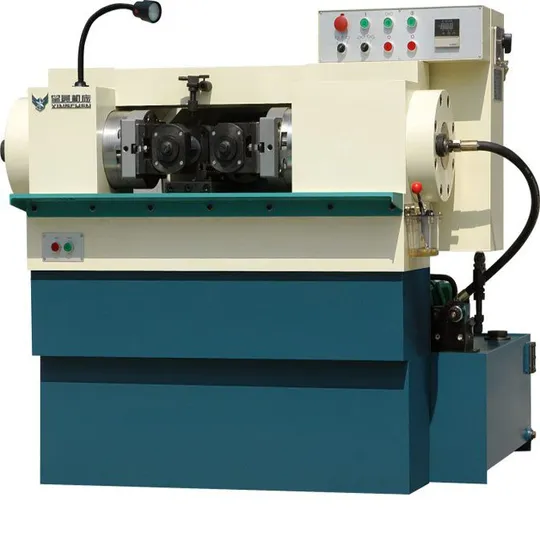

AXLE THREAD ROLLING MACHEINE CIRCLE DIE
Product Parameters
| Model | ZP28-M20 |
| Rolling spiline range | Max. DiameterAxial feed 20(mm) |
| | Max. ModuleAxial feed 2.5(mm) |
| Rolling die range | Max. Outer diameter 175(mm) |
| Aperture | 54(mm) |
| Max. Width | 80(mm) |
| Max. Center distance btw. Main axis | 196(mm) |
| Main axis rotationr. P. M. | 42.53.68.87 |
| Main axis inclination | ± 6° |
| Center height | 900(mm) |
| Gross power | 4.2KW |
| Dimensions(L× W× H) | 1176× 1160× 1200(mm) |
| Packing dimensions (L× W× H) | 1650× 1300× 1600(mm) |
| Weight | 1500(Kg) |
| Model | ZPA28-15 |
| MAX. Rolling pressure | 150(KN) |
| DiameterRadial feed | 60(mm) |
| Max. ModuleRadial feed | 4(mm) |
| Axial feed | 5(mm) |
| Rolling die rangeMax. Outer diameter | 178(mm) |
| Aperture | 54(mm) |
| Max. Width | 120(mm) |
| Max. Center distance btw. Main axis | 240(mm) |
| Main axis rotationr. P. M. | 28.35.45.56 |
| Main axis inclination | ± 5° |
| Center height | 900(mm) |
| Gross power | 8KW |
| Dimensions(L× W× H) | 1500× 1440× 1400(mm) |
| Packing dimensions (L× W× H) | 1800× 1750× 1900(mm) |
| Weight | 2500(Kg) |
Company Profile
Harbin Rainbow Technology Co.,Ltd is one of the biggest fastener equipment dealer and manufacturer in China. We have invested one Cold former factory (NINGBO), one Thread rolling machine factory(NINGBO), one Heat treatment furnace factory (SUQIAN) and one Electroplating equipment factory(WUXI). We have more than 30 years experiences in supplying all kinds of fastener equipment, such as Bolt Maker, Nut Maker, Cold Heading Machine, Thread Rolling Machine, Wire Drawing Machine, Heat Treatment Furnace and Zinc Plating line, etc. to customers all over the world. With our reputation increasing and our team becoming more professional, we have experienced a significant growth in business during the recent years. Nowadays, more and more reputed companies compete in a long-term cooperation with us. We abide by the principles of honesty, credibility, and mutual-benefit. Our motto is "ONCE BUSINESS, FOREVER FRIENDS", we will do our best to serve clients at home and abroad. Due to our top-notch professional knowledge and rich trad experience, we have seen our market developing ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you. Let's build a great future together!
