Automatic Deburring Machine Sgp1300 for Metal Parts-High Precision and Efficiency

Product Description

Product Description

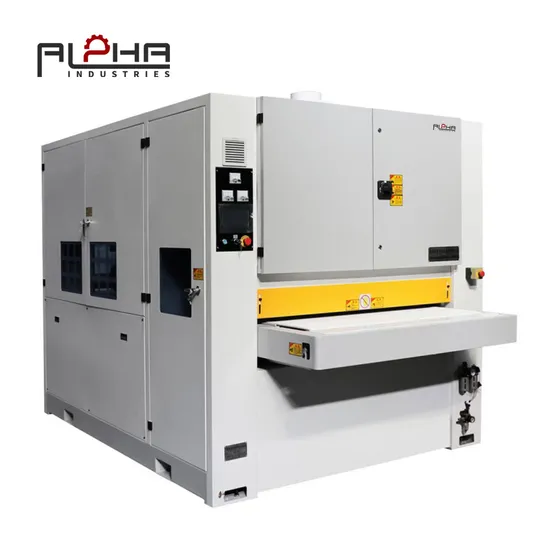

SGP1300 DEBURRING, EDGE ROUNDING, AND SURFACE FINISHING MACHINE FOR LASER CUTTING PARTS SGP1300 is a wide belt grinding and planet type deburring machine which is mainly applied in fabrication industry for flat plate and milling parts.
First station is wide belt grinding type for the big burrs removal. Second station is equipped with eight abrasive barrels on the head.
Each spins itself while the whole head rotates in the meantime. It can do deburring on all edges and deeply in holes on plate by the effects of abrasive media in high speed centrifugal grinding, scraping, cutting and filing.
Burrs on interior and exterior contours can be all removed, but the precise dimensions on plate will be kept. This machine is equipped with unique soft abrasive filaments by our design to against the features of the bur. Therefore, this is amachine that affects very less on the surface of parts and performs excellent on the non-flat plates as well.
The speed of abrasive cylinder, whole deburring assembly, conveyor is variable for even deburring, controlled by inverters.
This is a dry type operation machine, should be work with a dust collector.
Product Parameters

Maximum working width: 1280mm	Consumables: Wide abrasive belt, abrasive barrel
Working thickness range: 0-50mm	Ouantity ofabrasive barrels per set: 8
Convevor speed: 1.5-5m/min	Weight: 5000KGS
