Superior Quality Concrete Wall Saw

Product Description

Concrete Wall Saw Machine
Product Description of Wall Saw: Concrete wall saw is mainly used for the cutting of reinforced concrete wall, brick wall and other stone materials, as well as the renovation and reinforcement of old buildings. It can also cut large-area walls, such as, door holes, windows or elevator holes.
The wall that cut with it can be formed at one time, which can avoid the damage or the building structure caused by the traditional knocking construction. At the same time, the machine can help save the time, material resources, labor and costs.
Concrete wall saw can also be called wall cutting saw, concrete wall saw, wall cutting saw machine, which usually contains two types, hydraulic concrete wall and electric concrete wall saw according to the power.
Application of Wall Saw:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
4. 1600 mm blade which Maximum cutting depth up to 600mm.
Details of Wall Saw:
Specification
1. Specification of Hydraulic Concrete Wall Saw:

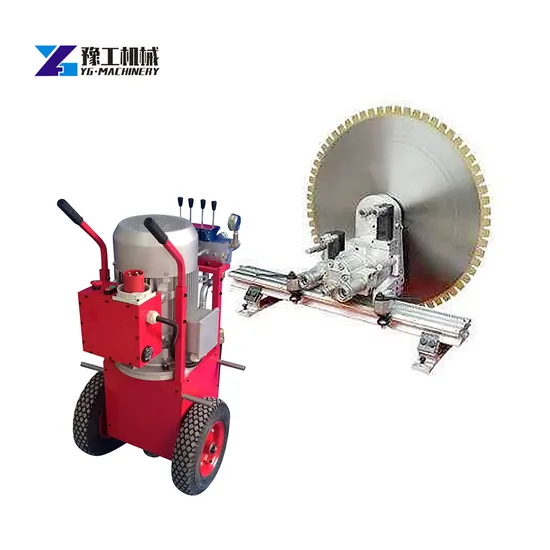

Hydraulic concrete wall saw is composed of power station and saw head. It was originally designed for cutting concrete wall and used for building engineering transformation.

Hydraulic Oil Pump	Model	YG-600	YG-700
	Max.power	25KW	30KW
	Motor cooling method	Air cooling	water cooling
	Rated voltatge	380V 50HZ	380V-420V 50HZ-60HZ
	Pressure stages	3	3
	Max.operating pressure	200bar/20Mpa	210bar/21Mpa
	Oil flow rate	30-80L/min	40-100L/min
	Dimensions	600mm*650mm*1050mm	500mm*520mm*1100mm
	Weight	220kg	140kg
Wall Saw	Saw blade diameter range	800-1400mm	800-1600mm
	Cutting depth	620mm	730mm
	Max.working pressure	180bar/18Mpa	200bar/20Mpa
	Max.oil flow rate	100l/min	100l/min
	Gearing	Gear	Gear
	Rotation speed	450/950/1300Rpm	450/850/1200Rpm
	Dimension	400mm*420mm*400mm	400mm*420mm*400mm
	Weight	38kg	39kg

2. Specification of Electric Concrete Wall Saw:
The electric concrete wall saw for sale in Yugong Machinery uses heavy double insulation high power motor and reducer, which has the characteristics of low failure rate, long service life and can save the maintenance cost at the same time. Special mechanical clutch protection device can effectively prevent the machine and personnel from damaged due to improper operation.

Model	YG-800	YG-1000	YG-1200
Saw blade diameter	800mm	1000mm	1200mm
Cutting depth	300mm	400mm	500mm
Power	6150w	6150w	6150w
Cutting Efficiency	3-6m/H	3-6m/H	3-6m/H
Color	Customer required	Customer required	Customer required

Packing & Delivery
1. Packaging: 1)Wrapped by protective film; 2)Packed by standard import & export wooden cases or carton boxes. 2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
