Euro-Standard 40mm*40mm PVC Plastic Electric Trunking Extrusion Machine with Punching Device Twin Screw Extruder Line

Product Description

Product Description
1. PVC trunking extrusion machine is a specialized piece of equipment used in the manufacturing process of PVC trunking.
2. This machine is designed to extrude or melt PVC material and shape it into trunking profiles of various sizes and designs.
3. The PVC trunking extrusion machine consists of a hopper, screw conveyor, twin screw extruder, which work together to melt and shape the PVC material.
4. The hopper is where the PVC powder are loaded, and the screw conveyor transports the powder to the barrel.
5. Inside the barrel, the PVC powder are heated and melted by the rotation of the screw, which generates heat through friction.
6. The molten PVC material is then forced through a die, which gives it the desired shape and size of the trunking profile.
7. The extruded PVC trunking profiles are then cooled down using a cooling system, which solidifies the material and ensures its structural integrity.
8. PVC trunking extrusion machines can produce a wide range of trunking profiles, including picket, privacy, and decorative designs.
9. These machines are highly efficient and can produce PVC trunking profiles at a high rate, making them suitable for large-scale production.
10. PVC trunking manufactured using extrusion machines are known for their durability, low maintenance requirements, and resistance to weathering and UV radiation.
Detailed Photos
Conical twin screw extruder
1. model choose SJSZ55/120, SJSZ65/132, SJSZ80/156 according to profile dimensions.
2. ABB/DELTA frequency inverter
3. Siemens Beide motor
4. Omron temperature control
5. High quality screw and gearbox
6. output 100kg-300kg per hour

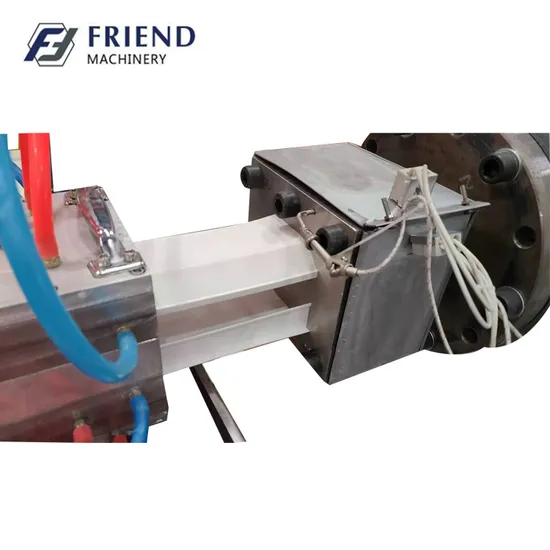

PVC profile mold
including die head mold, calibrator, cooling tank.
Vacuum calibration table
1. length can be 4000mm, 6000mm
2. including vacuum pump and water pump

Haul off machine
Double belt
rubber blocks are customized according to profile shape.
Profile cutting machine
1. blade cutting design
2. PLC touch screen control
3. phneumatic control

Punching machine
punching holes
Final product

Product Parameters

1	SRL-Z series high speed mixing unit
2	screw loading machine
3	55/110 65/132 model conical twin screw extruder
4	pvc trunking mold(single or double cavity)
5	vacuum calibration table
6	haul off machine/traction
7	cutting machine(punching machine)
8	stacker
optional	crusher machine
optional	miller/pulverizer/grinding machine

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: If I need more information, how to contact you?
Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine?
We send detailed machine quotation to you, if you are satisfied, we will make Proforma invoice for you, payment terms: 30% deposit, after machine testing good, 70% before shipment.
Q3: What about warrenty?
In some countries, we have agent and one year warrenty.
Q4: How can I believe your factory and company?
You are welcomed to ask authority to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machines technical improvements, we will inform clients.
Q6:Where is your factory located?
Our factory is in Zhangjiagang City which is nearby shanghai port, about 2 hours car driving, if you want to visit our factory, we can pick you up from airport or train station.
