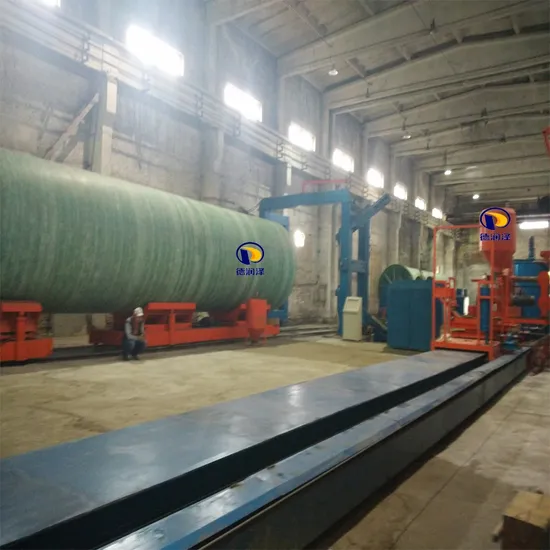

FRP Pipe Production Line, FRP Fiberglass Pipe Machine

Product Description

frp pipe production line,grp pipe diameter 1200mm machine

Product Description
QFW-2500VI main specifications:
1. Installed capacity: 193.6KW 2. The largest diameter of the production pipe: Φ2500mm 3. effective length of the production pipeline: 12000mm 4. production capacity: 1000kg / h 5. curing station heating device temperature: 105 ºC -160 ºC 6. maximum speed: 90m / min 7. The maximum width of yarn sheet: 200mm 8. Yarn feeding speed: 100kg / min 9. Nominal release force: 83t 10. Winch rated pulling force: 5t 11. Trolley Rated Torque Weight: 40t 12. Hydraulic Pump Station Rated working pressure: 16MPa 13. Stripping machine center height: 2000mm 14. Other stand-alone center height: 1500mm
FW-4000III main specifications:
1. Winding diameter range: Φ600-Φ4000mm 2. The maximum winding length: 12m
3. Winding angle: 45 ° -90 °
4. Installed capacity: 9.2KW
5. Positioning error: <1mm
6. The maximum width of yarn: 150mm
7. Production capacity: 500kg / h
FRP tank winding machine
Computer-controlled vertical winding machine is the most advanced ultra-large diameter winding machine developed by our company on the basis of absorbing foreign advanced technology. The machine is controlled by microcomputer and is especially suitable for on-site winding of large-diameter glass fiber reinforced plastic storage tank. Using the appropriate mandrel, the machine can be wound 4 meters to 25 meters of FRP storage tank. The control center of this machine adopts the PC industrial computer which is produced in Taiwan of China and inputs the parameters of the winding product. The microcomputer can automatically design the winding pattern of the product and then control the composite movement of the mandrel rotation and the up-down movement of the car, Resin fibers evenly distributed regularly in the product liners. The winding machine is a combination of technology and science, such as the rotation of the mandrel, the car moves up and down, winding tape laying, etc. are controlled by the software through the computer. The machine winding glass steel products, widely used in chemical, petroleum, brewing and other fields. The aircraft is reasonable in structure, innovative design, easy operation, reasonable man-machine interface, by the FRP colleagues of all ages.
FW-10000 main specifications
1. Maximum winding diameter : 10m 2. The maximum winding length : 12m 3. Product diameter range : 4m-10m 4. Installed capacity : 14.6KW 5. The maximum width of yarn : 168mm 6. Production capacity : 550kg / h
FW-15000 main specifications
1. Maximum winding diameter : 15m 2. The maximum winding length : 12m 3. Product diameter range : 4m-15m 4. Installed capacity : 18.6KW 5. The maximum width of yarn : 168mm 6. Production capacity : 550kg / h
>> Packing: According to customer's demand. >> Delivery: Within 60 days after the payment was received.
