2SN EN853 SAE 100r Two-Layer Rubber High Pressure Wire Braided Hydraulic Hose
Basic Info.
Model NO.
2SN
Color
Black
Dash
3-64
mm
5-103
Inch
3/16-4
I.D
5-103
O.D
12.8-121
Max W.P
41.5-3.5 MPa
Min B.P
165-14 MPa
Min B.R
90-1300 mm
Transport Package
Wooden Box or Carton
Specification
5-102mm
Trademark
ARGUS
Origin
China
HS Code
4009210000
Production Capacity
1000000 M /Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description

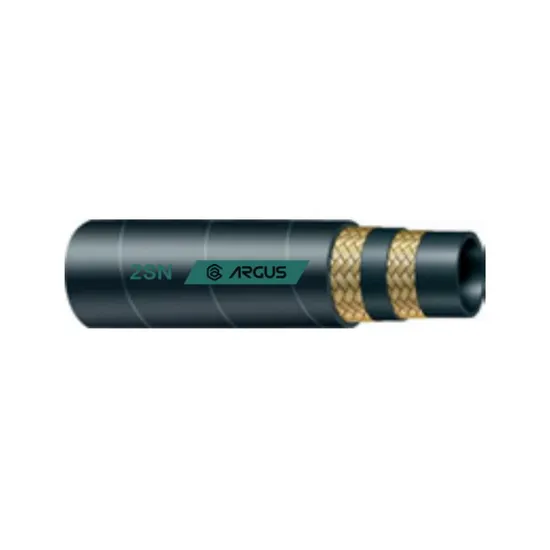

Product Description EN853 2SN is a two-layer high-pressure resistant braided hydraulic hose that is widely used in various industrial applications.EN853 2SN hydraulic hose is constructed using a two-layer design consisting of an inner rubber layer made of oil-resistant synthetic rubber and a reinforcement layer made of two high-tensile steel wire braids. The outer rubber layer is also made of oil and weather-resistant synthetic rubber that provides protection against abrasion, ozone, and UV rays. Features: High-Pressure Resistance: EN853 2SN hose is designed to withstand the high pressure of up to 400 bar. This makes it suitable for use in demanding hydraulic systems. Temperature Range: This hose can operate in a wide range of temperatures, from -40°C to +100°C. Flexibility: EN853 2SN hose is highly flexible, which allows it to bend easily without kinking or damaging the hose. Abrasion Resistance: The outer cover of this hose is made of synthetic rubber that provides excellent resistance to abrasion, which helps prolong the life of the hose.| Type | Hose Size | I.D | O.D | Max WP | Min B.P | Min B.R | WT | ||||||
| Dash | mm | inch | Min | Max | Min | Max | MPa | Psi | MPa | Psi | mm | kg/m | |
| 2SN-03 | -3 | 5 | 3/16 | 5.0 | 5.4 | 12.8 | 13.6 | 41.5 | 6020 | 165.0 | 23925 | 90 | 0.31 |
| 2SN-04 | -4 | 6.3 | 1/4 | 6.5 | 6.9 | 14.4 | 15.4 | 40.0 | 5800 | 160.0 | 23200 | 100 | 0.39 |
| 2SN-05 | -5 | 8 | 5/16 | 8.0 | 8.5 | 15.9 | 16.9 | 35.0 | 5075 | 140.0 | 20300 | 115 | 0.44 |
| 2SN-06 | -6 | 10 | 3/8 | 9.5 | 10.0 | 18.2 | 19.2 | 33.0 | 4785 | 132.0 | 19140 | 130 | 0.54 |
| 2SN-08 | -8 | 12.5 | 1/2 | 12.7 | 13.3 | 21.3 | 22.3 | 27.5 | 3990 | 110.0 | 15950 | 180 | 0.66 |
| 2SN-10 | -10 | 16 | 5/8 | 15.9 | 16.7 | 24.5 | 25.7 | 25.0 | 3625 | 100.0 | 14500 | 200 | 0.80 |
| 2SN-12 | -12 | 19 | 3/4 | 18.9 | 19.7 | 28.4 | 29.6 | 21.5 | 3120 | 86.0 | 12470 | 240 | 0.95 |
| 2SN-14 | -14 | 22 | 7/8 | 22.0 | 22.8 | 31.4 | 32.6 | 17.5 | 2537 | 70.0 | 10150 | 280 | 1.04 |
| 2SN-16 | -16 | 25 | 1 | 25.4 | 26.2 | 36.4 | 37.6 | 16.5 | 2390 | 65.0 | 9425 | 300 | 1.41 |
| 2SN-20 | -20 | 31.5 | 1-1/4 | 32.0 | 32.8 | 45.8 | 47.0 | 12.5 | 1810 | 50.0 | 7250 | 420 | 2.15 |
| 2SN-24 | -24 | 38 | 1-1/2 | 38.1 | 39.0 | 52.5 | 53.7 | 9.0 | 1305 | 36.0 | 5220 | 500 | 2.25 |
| 2SN-32 | -32 | 51 | 2 | 50.8 | 51.8 | 65.1 | 66.7 | 8.0 | 1160 | 32.0 | 4640 | 630 | 3.00 |
| 2SN-40 | -40 | 63 | 2-1/2 | 64.0 | 65.0 | 78.8 | 80.4 | 7.0 | 1015 | 28.0 | 4060 | 760 | 3.54 |
| 2SN-48 | -48 | 76 | 3 | 76.0 | 77.0 | 93.8 | 95.4 | 4.0 | 580 | 16.0 | 2320 | 900 | 4.50 |
| 2SN-56 | -56 | 89 | 3-1/2 | 89.0 | 90.0 | 105 | 107 | 4.5 | 655 | 18.0 | 2610 | 1100 | 5.00 |
| 2SN-64 | -64 | 102 | 4 | 102.0 | 103.0 | 119 | 121 | 3.5 | 510 | 14.0 | 2030 | 1300 | 5.70 |
