Special Offer Self Loading Concrete Mixer 6m3 Mobile Concret Small Planetary Concrete Mixer
Basic Info.
Type
Concrete Mixer
Shotcrete Type
Dry
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1390mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Accordingly
Name
Planetary Concrete Mixer
Item/Type
MP 500
out Capacity(L)
500
Input Capacity(L)
750
out Weight(Kg)
1200
Mixing Power(Kw)
18.5
Lifting Power(Kw)
4
Planet/Blade(Nr) One Mixing Shaft with T
2
Side Scraper(Nr)
1
Discharging Scraper(Nr)
1
Weight(Kg)
2400
Dimension (L*W*H, mm)
2230*2080*1880
Transport Package
Laminated Packaging
Specification
accordingly
Trademark
SDCAD
Origin
China
HS Code
8474900000
Production Capacity
5000 Sets/Month
Product Description
Product Description

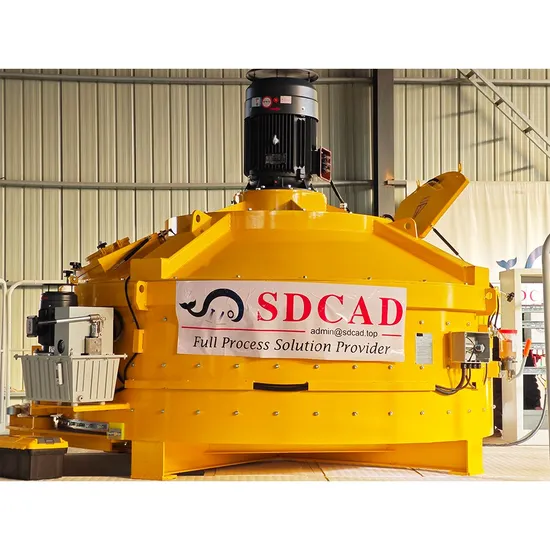

Brief Description Of Planetary Concrete Mixer
MP series planetary concrete mixer used for mixing concrete .Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete.
It is suitable for mixing dry hard concrete. It's widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, colorconcrete and dry mortar, etc.
Mixing Locus Diagrams
This diagrams show the perfect mixing action of the DEX planetary mixer from 5 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Product Parameters
| Model | MP330 | MP750 | MP1 000 | MP1 500 | MP2000 | MP2500 | MP3000 |
| Output Capacity (L) | 330 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input Capacity (L) | 500 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input Mass (kg) | 800 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing Power (kw) | 15 | 30 | 37 | 55 | 75 | 90 | 110 |
| Lifting Power (kw) | 4 | 7.5 | 11 | 15 | 22 | -- | -- |
| Skipper Capacity (L) | 580 | 1300 | 1740 | 2610 | 3480 | -- | -- |
| Skipper Mass (kg) | 870 | 1950 | 2610 | 3615 | 5220 | -- | -- |
| Weight (kg) | 170 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
| Dimension (mm) | 1910 * 1590* 1747 | 2581* 2336 * 2195 | 2891* 2602* 2217 | 3223* 2902* 2425 | 3625* 3230* 2630 | 2893* 3550* 2695 | 3893* 3550* 2975 |
