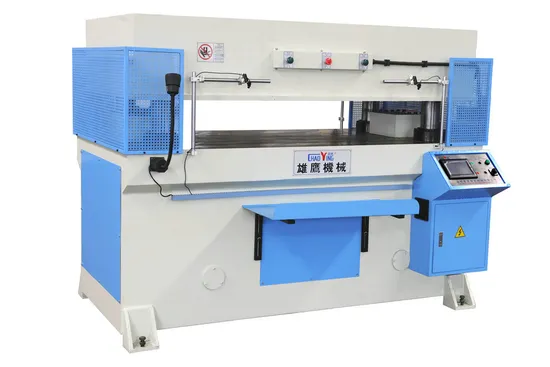

High Efficient Rubber Vinyl Floor Cutting Machine

Product Description

High efficient rubber vinyl floor cutting machine Use and character It is suitable for cutting all kinds of floor & wall decorative materials ( such as EVA floor , PVC anti-static floor , asphalt floor ,
rubber floor , carpet and so on ) into large pieces of finished product batch production . 1.PLC touch screen program control , it has two kinds of cutting die setting mode ( automatic and manual ) for optional ; 2. The operation is labor-saving and simple, with low malfunction, strong cutting force and high cutting speed. 3. Equipped with automatic pick-up device , it can save the worker labor and enhance the working efficiency ; 4. Equipped with wo Red-ray location device , it is helpful to put the board on the accurate place on cutting area ; 5. We can make the special available worktable size as per customer's need and install the water cooler as per customer's request ; Technical specification

Maximum cutting force	150T /200T
Travel adjustment range	0-200mm
Range between the working tables	80-280mm
Size of the upper pressing board	1680× 1100mm
Size of lower worktable	1680× 1120mm
Motor power	11kW/15Kw
Overall dimension	2380× 1850× 1900mm
Total weight	6000KG

Special cutting mold : Machine applicable Range :
