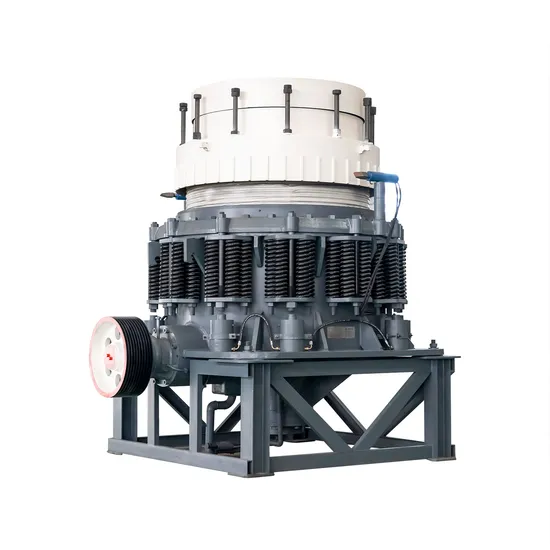

Concrete Construction Equipment Sand/Spring/Rock/Grinding/Hydraulic/Mobile/Stone/Mining Compound Cone Crusher with 220kw

Product Description

Concrete Construction Equipment Sand/Spring/Rock/Grinding/Hydraulic/Mobile/Stone/Mining Compound Cone Crusher With Casting Mantle Spare Part Bowl Liner Product Information
This series of products is a cone crusher with high efficiency, energy saving, environmental protection, economy and stability development that produced by our company based on summarizing and absorbing advanced foreign technologies. It is suitable for crushing all kinds of hard and medium hard ores and rocks. It can be divided into coarse crushing, medium crushing and fine crushing according to the operation materials, and is widely used in the fields of metallurgy, building materials, road construction, etc.
Technical Details

Model	Crushing Cavity Pattern	Max Feed Port Size(mm)	Discharge Port Rang (mm)	Motor Power(KW)	Pocessinh Capacity (t/h)
FPB-1400	EC	270	19-51	220	250-420
	C	215	19-51	220	200-420
	M	160	16-25	220	155-220
	S	115	13-22	220	150-230
FPB-1650	EC	330	22-64	250	300-610
	C	235	22-64	250	240-560
	M	175	19-38	250	215-320
	S	130	13-25	250	180-275
FPB-1950	EC	400	36-64	315	500-650
	C	267	22-64	315	300-560
	M	203	16-25	315	210-305

Advantages
1. Stable, reliable and durable
The spring safety device is used, the overload protection is stable and reliable, and the copper sleeve produced by special formula and process is durable.
2. Special cavity and bevel gear transmission design
The special crushing cavity design is adopted to improve the crushing capacity, and the bevel gear transmission is strong and stable. 3. Hydraulic adjustment, fast and convenient The semi-automatic hydraulic adjustment of the discharge port can effectively control the sand and gravel particle size, iron protection, automatic cavity cleaning, fast and time-saving.
4. Tooth plate is filler-free and labyrinth lubrication
The assembly surface of the fixed tooth plate and the movable tooth plate is specially designed and precision-machined. The tooth plate is filler-free and easy to replace. The labyrinth is combined with grease sealing and has a good dustproof effect.
5. Lubricating oil cooling and easy control
The lubrication circulation cooling system is made according to the actual situation of the majority of domestic users. The temperature control and pressure control system are easy to master and operate.
Process
Applicable Materials
Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.
Packing
Company Profile
Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. Adhering to the business philosophy of "honesty, pragmatism and innovation", and focusing on the product orientation of "intelligence, high efficiency, energy conservation and environmental protection," with 30 years of innovative development, Sanming's products now include stone crusher and screening equipment, casting spare parts, intelligent control systems, and EPC general contracting projects, covering numerous industries such as mining, building materials, highways, railways, bridges, coal, metallurgy and chemical industry. It has become a national high-tech company.
Certification
Main Product
Workshop
Finished product workshop
Production workshop
Foundry workshop
Test platform
Create a complete equipment test site for customers to more intuitively display product effects.Including jaw crusher, cone crusher, impact crusher and other machines
Project Case
After Sales Service
We win market respect with quality and win customer trust with professional services.
We carefully inspect and accept each production line, so that customers can put it into production with confidence.
We carry out quality tours all year round, and always adhere to the win-win development concept of "same heart, same virtue, same trade, same sharing".

Exhibition
FAQ
1.Can I have a sample order?
A: Yes.
2.What about the leading time ?
A: 15 working days.

3.Do you have any MOQ limit ?
A: MOQ is 1 set.

4.Can you provide OEM and ODM services?
A: Yes.

5.Will you provide pre-sale services ?
A: Yes. SAMYHI consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
6.Is our after-sales service excellent ?
A: Yes. SAMYHI's skilled technicians are available to assist with onsite installation,commissioning & training on request.
7.Will we provide technical support ?
A: SAMYHI provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
