Power Condition Monitoring Controller with 12VDC Output for Mains Normal and Outage Monitoring
Basic Info.
Model NO.
RTU5028
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Square Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
BLIIOT
Antenna
SMA Antenna interface
Backup Battery
900mAH, last 8hours
Others
FCC,ROHS
AC
220VAC
2G/3G/4G
Optional
Material
Metal
Protocol
Modbus RTU Over TCP,Modbus TCP
Analog input
4~20mA or 0~5V
Working temperature
-10ºC~60ºC
Working Humidity
Relative humidity 95% (condensation free)
Exterior dimension
70mm * 88mm * 30mm
SIM interface
Support 3V SIM Card
Transport Package
Box
Specification
70mm*88mm*30mm
Trademark
BLIIOT
Origin
China
HS Code
8531100000
Production Capacity
800000/Month
Packaging & Delivery
Package Size
10.00cm * 12.00cm * 5.00cm
Package Gross Weight
0.650kg
Product Description

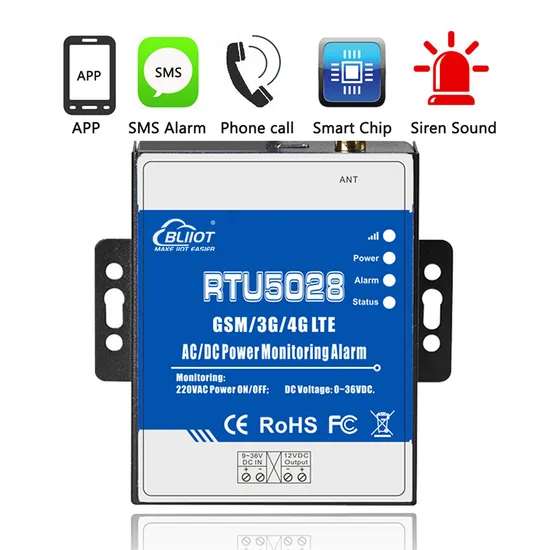

Product DescriptionGSM 3G 4G LTE Power Status Monitoring Alarm
Item No.: RTU5028
The GSM 3G 4G LTE AC/DC Power Monitoring Alarm can be used for chicken house, pig farm, solar power monitoring, DC power voltage monitoring, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory. Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory.
Inquiry Onsite Power Status with a FREE Call from Your Mobile Phone!
Interval Report Power Status to Your Mobile Phone by SMS!
Remote Reset, Remote Reboot, Automatic Reboot Periodicity!
Power Failure with SMS Alert and Siren Sound!
Support Modbus TCP and Modbus RTU over TCP for Cloud Monitoring!
Detailed Photos Product Parameters
| Parameter item | Reference scope |
| DC Power supply | 9~36VDC, recommend 12VDC1A |
| Power consumption | 12V input Max. 50mA/Average30mA |
| Frequency range | 2G :850/900/1800/1900Mhz 3G :W :900/2100Mhz C :850/1900Mhz T :850/2100Mhz 4G LTE |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Output | 12V DC |
| Protocol | Modbus TCP and Modbus RTU over TCP |
| Alert no. 10 authorised phone numbers | 10 authorized phone numbers |
| Backup Battery | 900mAH, last 8hours |
| Exterior dimension | L70mm*W88mm*H30mm |
| Net Weight | 300 g |
Beilai-Original&Reliable IoT Products Manufacturer Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
