Waste Bottles Recycling Plant Pet Oily Bottle Grinding Washing Crushing Machine

Product Description

Waste Bottles Recycling Plant Pet Oily Bottle Grinding Washing Crushing Machine
Description of waste drining water bottles, post-consumer PET plastic bottle recycling machine:
This plastic recycling machine is to crushing washing recycling the waste plastic PET bottles. This PET plastic recycling machine is consist of label remover, sortor, crusher, cold washer, hot washer, dewatering, packing system. It can get the clean PET flakes from PE PP cap, oil, PVC label, then use the PET flakes again, to avoid plastic pollution.
This PET plastic recycling machine can easily wash and recycle waste PET bottles. Waste and dirty PET bottles can be disposal step by step in this PET plastic recycling machine. It is special for recycling PET bottles. We equiped drying system at the end of the washing line so that completely dry flakes can be collected and packed directly after been washed.
The whole PET plastic recycling machine can designed based on how dirty the PET bottles are, and make sure of the quality of the final products.
Coordinating the production line with follow processing work (PET pelletizing machine), and it will make waste and dirty PET bottles to be the PET pellets material, and can to producing new PET bottles.
The whole waste drining water bottles, post-consumer PET plastic bottle recycling machine line includes(customizable):
Metal Chain Convery→De-Baler(Baler Opener) →Belt Conveyor→Tromel→Belt Conveyor→Label Remover→Sorting Table→Metal Detactor→Belt Conveyor→Crusher→Screw Loader→Floating Washer→Friction Waser→Hot Washer→Screw Loader→Friction Washer→Floating Washer→Dewatering Machine→Zig-Zag Separater→Silo

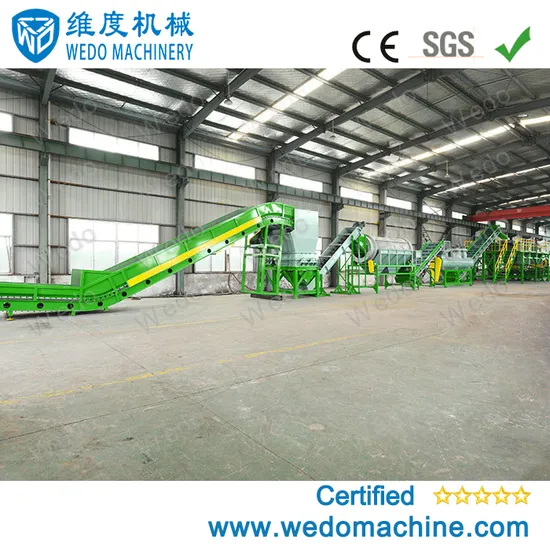

Photos of waste drining water bottles, post-consumer PET plastic bottle recycling machine:
Metal chain coveyor for Pet Plastic Drink Bottle Recycling Machine
debaler machine for Pet Plastic Drink Bottle Recycling Machine
babel remover of Pet Plastic Drink Bottle Recycling Machine
Crusher/granulator/grinder of Pet Plastic Drink Bottle Recycling Machine
Dewatering machine of Pet Plastic Drink Bottle Recycling Machine
Hot washing tank of the Pet Plastic Drink Bottle Recycling Machine
The fuction of some main parts in waste drining water bottles, post-consumer PET plastic bottle recycling machine: Belt Conveyor: The materials go into the crusher by the crawler belt, which is move by inside scroll wheel. Label Remover: Remove the label from the bottles. Manual Sorting Belt: If the label still in the bottle, worker can remove the label by hand. In addition, can separate the different color by hand. Crusher/Grinder: Crushing the material into small size. Screw Loader: to transform the material to next step. Hot Washer: To washing off the dirty, like oil, sand, in hot washer need use the detergent, then can get very clean PET flakes. High-speed Friction Washer: Through the high speed on the shaft of the vane flap and spray water to the common function of good cleaning effect. Floating Washer: It used in cleaning pet flakes, make the flakes cleaner and whiter. Also is the necessary equipment of the bottle and bottle cap. Dewatering: Rejection the water from the flakes, moisture content is less than 2%.
Technical data of waste drining water bottles, post-consumer PET plastic bottle recycling machine

Input capacity	1000kg/h	1500 kg/h	2000 kg/h
Workshop(M*M*M)	60 (L)×10(W)×6(H)	70(L)×10(W)×6(H)	90(L)×18(W)×6(H)
Labor	8Persons	10 Persons	14 Persons
Installation power	240KW	307KW	420KW
Water needed:	4~5Ton/h	6~8Ton/h	8~10 Ton/h
Final flakes	Moisture: max 1.5% Bulk density: 0.3G/CM3 Particle size: 10-16mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1.5% Bulk density: 0.3G/CM3 Particle size: 10-16mm Metal content: max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1.5% Bulk density: 0.3G/CM3 Particle size: 10-16mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

After this waste drining water bottles, post-consumer PET plastic bottle recycling machine, we also supply the following production lines of PET plastic pelletizing machine, that to make the PET flake become the PET pellets.
Wedo Produce steps:
Wedo have a fully step for the Pet Plastic Drink Bottle Recycling Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.
Wedo service:
We do best service for you in Pet Plastic Drink Bottle Recycling Machine
After this Pet Plastic Drink Bottle Recycling Machine, our company also supply the following recycling lines of PET plastic pelletizing machine, that can make the PP PE film into PP PE pellets.
Any further about the Waste Bottles Recycling Plant Pet Oily Bottle Grinding Washing Crushing Machine, please contact us timely we will give your professional fully support.
