High-Efficiency Dual Station Blow Molding Machine for Bottles
| US$25,800.00-46,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EB
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Certification
CE, ISO9001:2008
Clamping Force (kN)
86
Output (Kg/H)
65 Kg/H
Accumulator Capacity(L)
100 L
Die Head Heating Power(Kw)
19 Kw
Screw Heating Power(Kw)
19 Kw
Mold Platen Size(Height)(mm)
430 mm
Screw L/D Ratio
25
Extruder Motor Power(Kw)
18.5 Kw
Screw Diameter (mm)
70 mm
Mold Platen Size(Width)(mm)
480 mm
Power (Kw)
11
Hollow Part Volume
5L
Air Pressure(MPa)
0.8 MPa
Trademark
POWERJET
Origin
Guangdong, China
Product Description

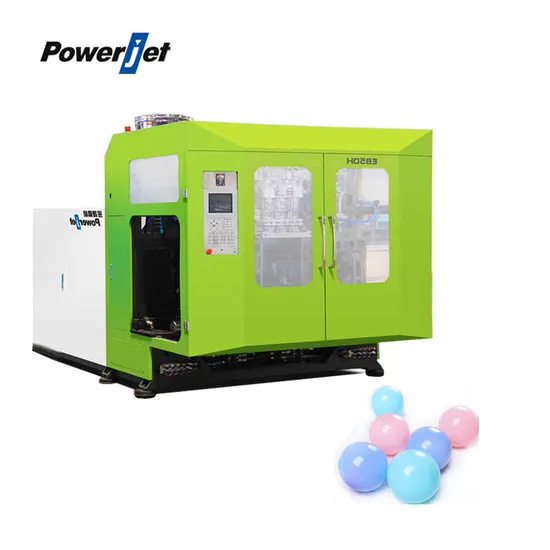

Products DescriptionEXTRUSION BLOW MOLDING MACHINE HIGH-SPEED DOUBLE STATION EB50H.
Powerjet Double Station Extrusion Blow Molding Machine EB50U is specialized for manufacturing bottles and containers Max 5L.
Max Bottle Capacity - 5(L)
Clamping Force - 100(KN)
Extrusion Weight(HDPE) - 80(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc.
Product Paramenters
| Model | | EB50H | |
| Max. Product | L | 5 | |
| Clamping Force | KN | 86 | |
| Screw Diameter | mm | 70 | |
| Screw L/D Ratio | L/D | 25 | |
| Screw Rotary Speed | RPM | 65 | |
| Extrusion Weight (HDPE) | kg | 65 | |
| Extrusion Motor Power | KW | 18.5 | |
| Pump Motor Power | KW | 11 | |
| Heating Capacity | KW | 17 | |
| Operation Pressure | Mpa | 0.6~0.8 | |
| Air Consumption | m3/min | 2.5 | |
| Cooling Water Consumption(25°c) | L/min | 70 | |
| Machine Dimensions (LXWXH) | mm | 3.7*2.8*2.3 | |
| Machine Weight | kg | 6000 | |
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.
