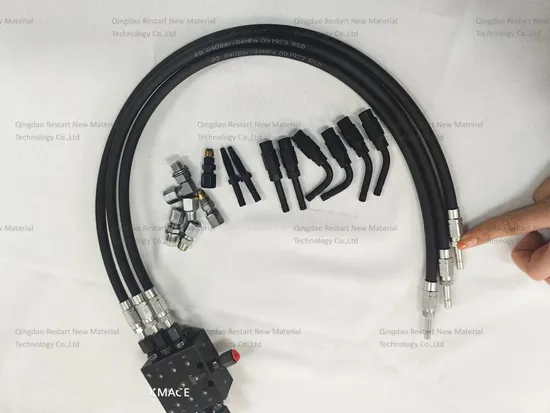

Automatic Central Lubrication System for High Pressure Grease Hose

Product Description

Product parameters

INCH	Mm	Mm	Model	WP.MAX			BP.MIN			TP.	Safe	Change Length	Rmin.MIN	Weight
				MPa	Bar	Psi	MPa	Bar	Psi	Bar	Factor	WP.	Mm	Gr/m
1/8	4,0	8,6	RSD101A	28	280	4060	84	840	12180	420	3:1	±1,5%	20	53,0
3/16	5,0	10	RSD101B	28	280	4060	84	840	12180	420	3;1	±1,5%	30	68
1/4	6,3	11,2	RSD101C	28	280	4060	84	840	12180	420	2.5:1	±1,5%	40	78
1/8	4,0	9	RSD102A	40	400	5800	100	1000	14500	500	2.5:1	±1,5%	20	62
1/8	4,2	8,8	RSD102B	36	360	5220	90	900	13050		2.5:1	±1,5%	20	58

HOSE OD.: 8,6+0.15/-0.1MM
HOSE Id: 4,0±0,1MM
Max Betriebsdruck Statisch: 280Bar
Test Pressure: 420Bar
Burst pressure at 20ºC: 840Bar
Safety Factor: 3:1
Weight: 5,5kg/100m
Temperature range: -40ºC-+80ºC
Product use
1. Wind power lubrication hose solution
2. Commercial automotive lubrication hose solutions
3. Mining machinery lubrication hose solutions
4. Construction machinery lubrication hose solutions
5. Port terminal lubrication hose solutions
Our services
1. Quick fitting installation can be straight core, bent core(90 deg,45 deg)or 7/16 JIC fittings.
2. Grease hose is very flexible, makes it easy to run lines where needed.
3. We can accept custom printing, OEM.
4. We can supply filled with grease.
Company picture
Company Profile
Qingdao Restart New Material Technology Co., Ltd is a famous company producing Lubrication Hose and TPU Hose. We not only provide customers with high-reliability and cost-effective standard products, but also continuously develop new products according to the latest requirements of customers to meet the special application requirements of various industries.
Our strict process and high quality's raw material make it to pass ISO9001,ISO45001and ISO14001 system certification. The company maintains extensive cooperation with , WANHUA , DuPont, Arkema and other international leading material suppliers, and has maintained the strongest competitiveness in new material development and new technology applications.
