5 Axis CNC Swiss Lathe Machine with Great Functions Machining Lathe

Product Description

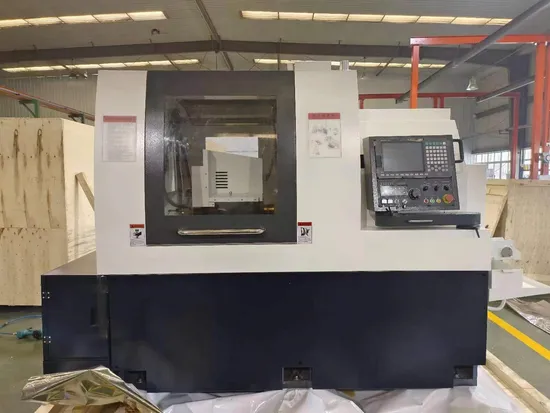

Swiss Lathe/CNC Automatic Lathe
The Swiss type lathe, also known as a CNC automatic lathe, is an exceptional piece of precision processing equipment. Its capabilities transcend traditional boundaries, offering unrivaled accuracy and efficiency in machining.
With its sophisticated multi-functional processing capabilities, this machine can effortlessly handle tasks such as tapping, milling, drilling, and turning. Its innovative design features dual spindles and a state-of-the-art double Y-axis, allowing simultaneous processing that significantly minimizes processing time. Ideal for the batch production of uniquely shaped, non-standard parts, it is particularly adept at crafting precision hardware and intricately designed shafts.Step into a realm of unmatched precision with our trailblazing Swiss-style lathe, a true marvel in CNC automatic technology. This exceptional machine revolutionizes your workshop, seamlessly executing a variety of operations such as tapping, milling, drilling, and turning with extraordinary precision. Outfitted with dual spindles and an avant-garde double Y-axis, this lathe epitomizes efficiency, enabling concurrent processing that dramatically reduces production time. Crafted specifically for batch production of complex, non-standard components, it excels in fabricating precision hardware and intricately shaped shafts.
Product Description
Within the realm of CNC Swiss machines, the sliding headstock masterfully propels a portion of the metal stock through the guide bushing. Meanwhile, the remainder of the workpiece is securely clamped within the chuck positioned behind this guide, ensuring it stays shielded from the tooling area. This sophisticated mechanism guarantees precision and steadfastness. Once the machining of a particular segment of the workpiece is concluded, the versatile bar stock advances seamlessly along the z-axis, preparing for the meticulous crafting of the next segment. This thoughtful, segmented process allows parts to be turned with exceptional speed and precision. By eliminating part deflection even under robust cutting forces, it significantly enhances the accuracy and reliability of the machining process.Modern Swiss-style lathes ingeniously employ one or two main spindles in conjunction with one or two secondary back spindles. The primary spindle is tasked with executing the majority of machining operations. Conversely, the secondary spindle, strategically positioned behind the part, adeptly picks up the part post cut-off. It then performs an array of secondary operations, such as drilling or tapping areas that were previously inaccessible, ensuring comprehensive finishing touches.Upon the culmination of these intricate operations, the secondary spindle efficiently ejects the completed part into a collection bin. This automation negates the necessity for an operator to manually swap out each part, a common requirement with standard CNC turning machines. Regarding the materials utilized, Swiss lathes predominantly cater to metals such as carbon steel, aluminum, stainless steel, and brass, and occasionally plastics like nylon and polycarbonate, though they are seldom used for woodworking.


Product Parameters

SM205/SM265
FANUC 0i TF-PLUS	SYNTEC 220TB
Main10,000min-1/Sub8,000min-1	Main8,000min-1/Sub8,000min-1
φ20mm/φ26mm
260mm
32m/min(X1:24m/min)	24m/min
6X [12×12]/5X [16×16]
5X [φ25-ER16]
4X [ER16]
4X [ER16]
2.2/3.7KW	3.9KW
1.5/2.2KW	3.9KW
0.75KW	0.75KW
X1:0.75KW;:0.5KW	0.75KW
0.4KW
180L
1.8L
1,000mm
3,600Kg
2610×1530×1674mm
7axis/4axis
LCD 10.4"
Standard
Standard
Standard
Standard
Standard

Items
Standard units	Hand wheel	C:0.001° C axis resolution: 0.001 °
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	/C+ Main/Sub axis C + brake	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Rectangular power seat
	Oil cooler	Long after loading device
	Gun drill	Dynamic seat adjustable Angle
	Chip conveyor	4 [ER16] 4axis cross tools (module)
	Oil mist collector	2 [ER16] 2axis eccentricity tools(rotating)
	High pressure pump	After the end of the quick change perspective
	Thread whirling rings	3+1 [ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss MachiningOriginally emerging from the watchmaking industry, Swiss machining technology has brilliantly expanded its sophisticated reach, ingeniously adapting to a wide array of sectors. Industries empowered by this precision marvel include:1) AerospaceIn the aerospace industry, where complexity meets necessity, Swiss machining expertly meets the demand for intricate components. This field significantly depends on these advanced lathes for crafting vital parts from robust materials like aluminum alloys and steel, ensuring precision in products such as fans and fasteners, which are paramount to the sector's success.2) Medical devicesThe medical field, a realm where precision is non-negotiable, finds the Swiss-type lathe indispensable for fabricating delicate, high-precision components. It forms the core of manufacturing surgical instruments and implants, meeting the stringent precision standards and ensuring the quality necessary for life-saving medical devices.3) ElectronicsAs the electronics industry continues its march towards miniaturization and sophistication, traditional lathes fall by the wayside. Here, CNC Swiss machining excels, delivering unparalleled precision required for crafting connectors, pins, and intricate electronic parts, perfectly matching the advanced demands of today's cutting-edge technology.4) AutomotiveIn the face of the automotive industry's ever-evolving and intricate mechanical challenges, Swiss machining technology stands as an invaluable asset. It has a significant role in producing the sophisticated components that drive the future of automotive innovation.
Through Swiss machining, auto manufacturers achieve impressive efficiencies in producing suspension components, carburetor covers, and engine parts. This cutting-edge approach offers competitive advantages such as reduced costs, optimized production processes, and enhanced manufacturing speeds, ultimately revolutionizing the automotive sector.
