Low Price Sand Cutter Jet Suction Dredger Prices for Sale

Product Description

Product Description

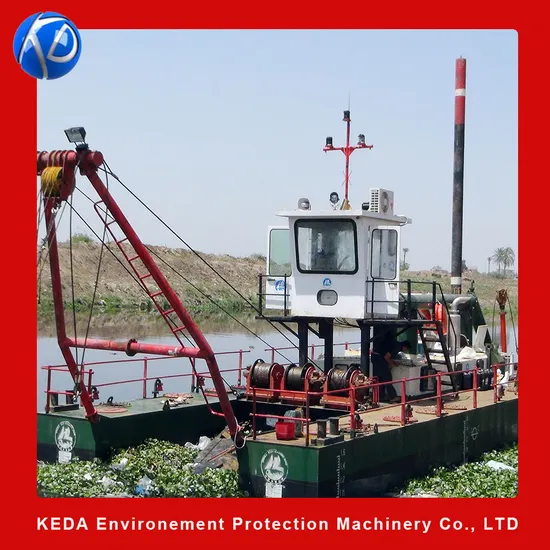

1)Cutter Suction Gold Dredger Ship is flexible to most kinds of geologic structures and can be widely used in mineral digging, port(channel) dredging and reclamation works.
2) By absorbing advanced technology of Dutch and American related products, this series of
dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3)The capacity of KDTJ dredgers range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
Product Parameters

Model	KDCSD200	KDCSD250	KDCSD300	KDCSD350	KDCSD400	KDCSD450	KDCSD500
Dredger Body
Dimensions(L*W*H)m	12.5*4.6*1.3	12.5*5.8*1.6	14.5*5.8*1.8	14.5*5.8*1.8	22*6.4*2	26*7*2	26*7.1*2.2
Engine room(m)	7.5*2.25*1.4	8*2.8*1.6	9*3.2*1.8	9.5*3.2*1.8	12*3.4*2	14*3.4*2	14*3.5*2.2
Dredging data
Standard dredging depth	6-7m	6-8m	8-10m	10-12m	12-14m	12-14m	12-14m
Pump model	8/6	10/8	12/10	12/10	14/12	14/12	450WN
Water flow	450m3/h	800m3/h	1100m3/h	1500m3/h	1900m3/h	2500m3/h	3200m3/h
Suction pipeline diameter(mm/inch)	260	300	350	350	400	450	500
Discharge pipeline diameter(mm/inch)	200	260	300	350	400	450	500
evices
Total power KW	176kw	258kw	353kw	480kw	640kw	930kw	1200kw
Generator set(kw)	24	24	24	24	24	36	36

Feature
1) CCS ISO9001:2008 Certificate;
2) The cutter suction gold dredger is a kind of dismountable cutter suction dredger and non-propelled;
3) The cutter is directly driven by one low speed hydraulic motor;
4) The two spuds are operated by means of a hydraulic ram;
5) Oil for the hydraulic system is supplied by vane pumps.
Certifications
Detailed Photos

Our Service
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
