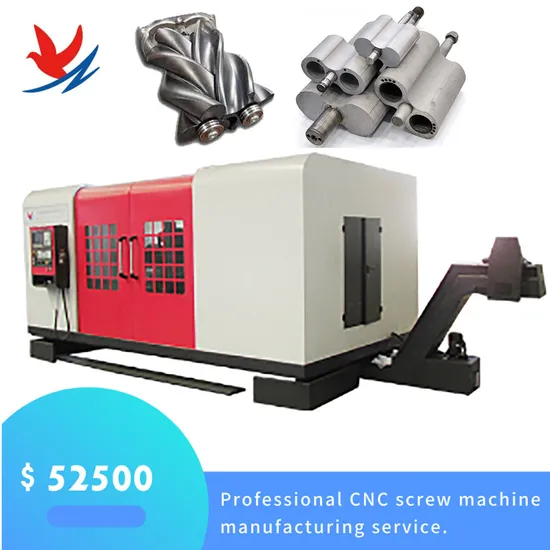

CNC Special Roots Pump Rotor Milling Machine with Good Price

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>>> Product Description
Kangnuo CNC special milling machine for Roots pump rotor
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
PRODUCT SPECIFICATIONS

project	content	unit
The length of the lathe bed	4200	mm
Bed width	1000	mm
Lathe bed structure	The four guide
Maximum machining diameter	Φ 220	mm
Maximum workpiece length	1400 (including tooling 200)	mm
Maximum milling length	600	mm
Milling spiral Angle	Plus or minus 60 °
Milling motor power	22	KW
Milling motor speed	1500	r/min
Milling cutter rod diameter	Φ 60	mm
Milling cutter diameter	290 (maximum)	mm
	127 (minimum)
Maximum mounting width of milling cutter	150	mm
Milling cutter speed range	80-400.	r/min
Distance between cutter spindle center and workpiece spindle center	270 (maximum)	mm
	70 (minimum)
Spindle diameter of tailstock	Φ 130	mm
Maximum stroke of tailstock sleeve	60	mm
Tailstock sleeve mounting taper hole	Morse # 6
Tailstock cylinder specifications	MOB63 x 100
C axis motor torque	38	Nm
C shaft speed	0 to 25	r/min
The unit of minimum Angle of the C axis	0.005	The degree of
X axis motor torque	30	Nm
The X axis stroke	200	mm
X axis ball screw specifications	6310	(bot)
X axis positioning accuracy	0.015	mm
X axis repeat positioning accuracy	0.012	mm
Z axis motor torque	30	Nm
The Z axis stroke	1500	mm
Z axis ball screw specifications	8010	(bot)
Z axis positioning accuracy	0.015	mm
Z axis repeat positioning accuracy	0.012	mm
Motor torque of axis A	22	Nm
A shaft drive form	Worm gear and worm
A shaft speed	0-20	r/min
Unit of minimum Angle of axis A	0.005	The degree of
Machine tool dimensions	4500 * 2500 * 2100
Machine weight	12	Tons of

PRODUCT CONFIGURATION

A2-6 4500 rpm spindle

GSK Control system

8-station servo hydraulic tool

Hydraulic chuck

Ball screw and line track

A convex and a flat tailstock design

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design Other Optional configuration

SYNTEC 22MA

FANUC

SIEMENS

HNC808DM
