CNC Vertical Wire Winding Machine From China
| US$4,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LR-20
Elevating Speed of Truck (M/Min)
0.5
Transport Package
Plywood Cases or as Customized
Specification
Height of chuck above floor (mm): 500
Trademark
EA-YBBA
Origin
China
Production Capacity
200 Sets Per Month
Product Description

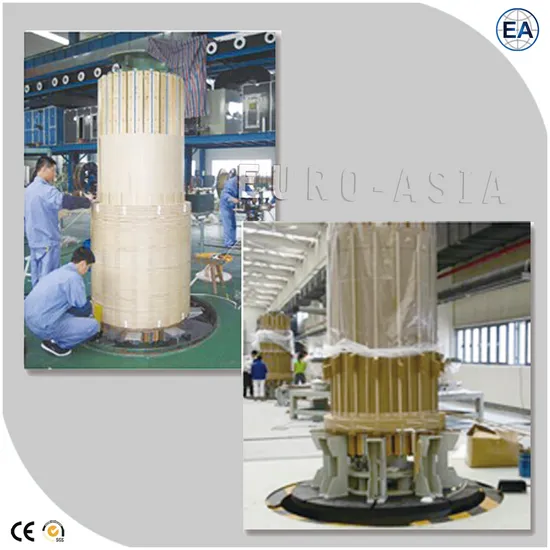

Application:Automatic over Floor Vertical Winding Machine is applied to coil winding for large and middle capacity transformers.
Functional features:
The machine is made up of a stepless speed variable winding chuck and a hydraulic lifting platform. No any pit should be constructed in foundation and the chuck need not lift. According to customer requirements can be arranged into a pie wire, tensioning unit, accessories and operators could load on the platform, which enables a constant operating altitude. This machine is suitable for regions with high level of underground water or workshop unsuitable for pit.
Technical Specifications of Vertical Winding Machine
| Model Parameter | LR-10 | LR-15 | LR-20 | LR-25 | LR-30 | LR-35 |
| Diameter of chuck(mm) | ¢1500 | ¢1800 | ¢2900 | ¢2200 | ¢2800 | ¢2800 |
| Max coil diaceusion (mm) | ¢2200 | ¢2500 | ¢3000 | ¢3400 | ¢3500 | ¢3500 |
| Height of chuck above floor (mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Max load on chuck (T) | 10 | 15 | 20 | 25 | 30 | 35 |
| Max torque of chuck (N.m) | 9000 | 10000 | 15000 | 16500 | 23000 | 35000 |
| Chuck speed (r/min) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Travel of platform (m) | 2.2 | 3.0 | 3.0 | 3.0 | 3.5 | 3.5 |
| Elevating speed of truck (m/min) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Moving speed of movable platform (m/min) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Outline Dimension (mm) (L* W * H) | 5086×4586×4236 | 6500×6000×5020 | 6500×6000×5020 | 6856×6356×5020 | 6856×6356×5020 | 6856×6356×5020 |
