New Type 2036 Multi-Head CNC One Head with Six Spindles Automatic Woodworking Router for Sale in UK

Product Description

2036 Multi Spindle Cnc One Head With Six Spindles CNC Woodworking Machine
Features: Six sets 2.2kw water cooling spindle with 6 pieces spindle clamp, can work more efficiently at the same time. WEIHONG NC PM95A control system with computer control box, support 4 axis working at the same time Multi-function working surface, half of the working table is T-slot table, the other half are 6 set rotary devices which could engrave cylinder workpiece. Parameters:

Descriptions	Parameters
Product name	2036 one head with six spindles cnc router
Modle	ELECNC-2036/6S
Working area	2000*3600*200mm
Control system	NC PM95A control system with computer control box
Spindle	6 sets 2.2kw water cooling spindle with 6 pieces spindle clamp
Spindle speed	0-24000RPM
Inverter	6 sets 2.2kw fuling inverter
Motor and driver	FL 118 stepper motor and YAKO 2811 bigger and stronger driver
Voltage	380V, 3ph, 50Hz
Linear rail	Sweden ABBA #25 linear guide for all axis
Table structure	New type thicker and bigger heavy duty welded frame and gantry
Table surface	T-slot work table,1400mm length
X,Y axis transmission	Helical rack and pinion drive for X,Y axis
Z axis transmission	Taiwan TBI 2510 ball screw for z axis
lubrication system	Manual lubrication system

PS: All the working area and specifications can be customized according to your requests.

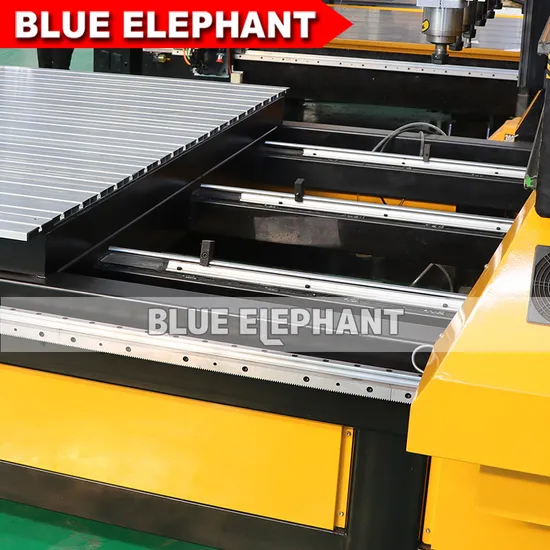

Detail Image

Applications:
Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on. Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold. Relief sculpture and 3D engraving. Cylindrical object. Packaging Details:
Outside package:Standard marine export plywood case. inner package:Stretch film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 15 working days after payment.
