Agitator Mixer Shampoo/Liquid Soap/Detergent Stainless Steel Mixing and Heating Tank

Product Description

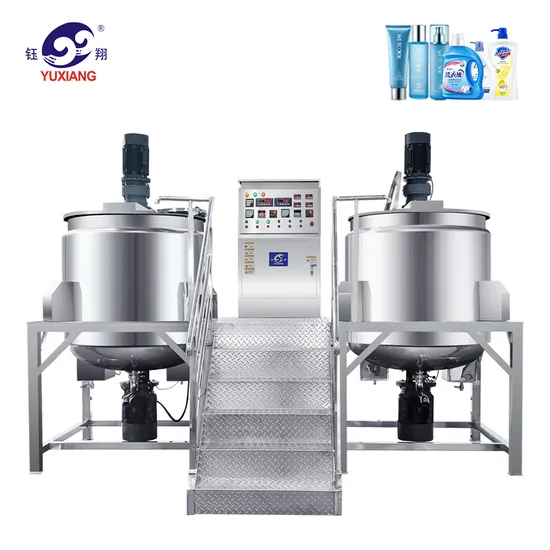

Agitator mixer shampoo liquid soap detergent stainless steel mixing and heating tank
Product Description liquid soap production equipment:
agitator mixer shampoo liquid soap detergent stainless steel mixing and heating tank Suitable for mixing different materials. Such as the production of laundry detergent, shampoo, shower gel, mucus mixed with each other, dissolved, mixed evenly. Set heating, stirring, homogenization, temperature control, cooling and other functions in one.
agitator mixer shampoo liquid soap detergent stainless steel mixing and heating tank Stirring homogeneous motor are imported, Taiwan Delta frequency control. According to different process requirements heating or cooling material. Optional vacuum pump, vacuum pumping foam. Equipped with operating platform and electric control cabinet, to facilitate the comprehensive monitoring of equipment operation.
Applicable Products:
1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.
2 Daily chemical industry:
Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry:
Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry:
Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry:
Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
Parameter:
1. Material: Inner: SUS316L Thickness:6mm
Middle: SUS 304 Thickness: 6mm
Outer layer: SUS304 Thickness: 3mm
2. The actual volume: 1200L
Work volume:1000L

3. Mixing speed: 0-63r / min (frequency control); motor power: 4KW
Scraper for the overall manufacture of PTFE; imported reducer
Under the homogeneous speed: 0-3000r / min (frequency control); Power: 7.5KW

4. Heating method: electric heating
Whole pot heating time: 1-2 hours

5. With ladder, operating platform, electric control cabinet. SUS304 stainless steel stent embossed aluminum, wash water all through the pipe into the outfall

Note:agitator mixer shampoo liquid soap detergent stainless steel mixing and heating tank used in the production of shampoo, hair cream, conditioner, etc.
can also be used for the production of laundry liquid, hand sanitizer, detergent, shampoo, and so on. Such as the production of laundry detergent alone, you can choose not equipped with homogenizer.
(Equipped with a homogenizer can improve production efficiency)

Can be customized according to customer requirements 220V / 380V, 50Hz / 60Hz.and so on.
agitator mixer shampoo liquid soap detergent stainless steel mixing and heating tank production pot using steam heating or Electric heating

Product Parameters Technical Parameters: (Suitable to JBJ )

Specification(L)	Volume (L)	Mixing Power (KW)	Mixing speed (R/MIN))	Homogeneous power (KW)	Homogeneous speed (R/MIN)	heating way
JBJ-200	200	1.5	0-65	4	2890	Steam Or electric
JBJ -300	300	1.5-2.2	0-65	4	2890
JBJ -500	500	3.0	0-65	5.5	2890
JBJ -1000	1000	4	0-65	7.5	2890
JBJ -2000	2000	5.5	0-65	11	2890
JBJ -3000	3000	7.5	0-65	18	2890
JBJ -5000	5000	11	0-65	22	2890

note: in case of inconformity of the table due to technical improvement or customization ,the real object shall prevail.
