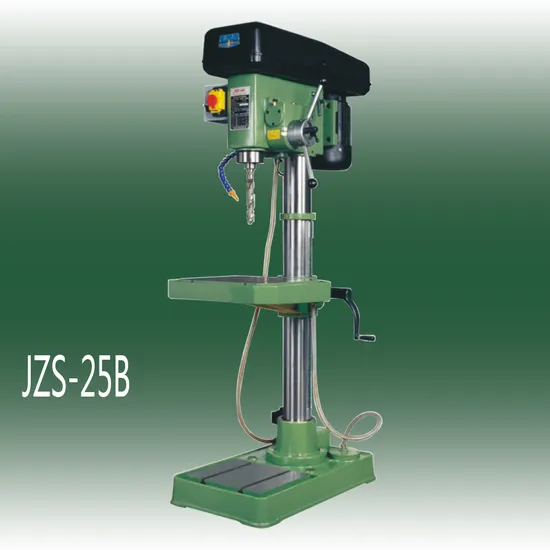

High Speed Vertical Drilling Tapping Bench Drill Jzs-25b Metal Heavy Duty Cast Iron Steel Tapper Machine M24 M22
| US$1,727.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JZS-25B
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
1500W
Max Drilling Capacity
25 mm
Transport Package
Wooden Case
Specification
177x91x55cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | JZS-16/JZS-25 | JZS-25B |
| Max.tapping capacity(Cast iron/Steel) | M16/M12,M24/M22 | M24/M22 |
| Max Drilling capacity | 16/25mm | 25mm |
| Diameter of column | 85/102mm | 102mm |
| Spindle travel | 93/130mm | 130mm |
| Distance spindle axis to column surface | 180/230mm | 230mm |
| Max.distance spindle nose to worktable | 425/750mm | 740mm |
| Max distance spindle nose to base | 610/990mm | 1050mm |
| Spindle taper | MT.2/MT.3 | MT.3 |
| Spindle speeds range | 160-1820rpm/160-1880rpm | 160-1880rpm |
| Spindle speeds | 9 | 9 |
| Dimension of worktable surface | 270x280mm/340x360mm | 390x470mm |
| Dimension of base worktable surface | 245x245mm/260x260mm | 325x275mm |
| Overall height | 1050/1560mm | 1640mm |
| Motor | 750W/1500W | 1500W |
| G.W./N.W. | 122/108kg,220/193kg | 293/265kg |
| Ship measurement | 115x76x43cm/169*90x49cm | 177x91x55cm |
