Truck Mounted Folded Boom Pump 53m Concrete Pump Truck Special Chassis Sym5365thbfs 530s with 6 Section Rz Boom in Stock
Basic Info.
Model NO.
SYM5365THBFS 530S
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Vertical Reach
52.2m
Horizontal Reach
45.9m
Reach Depth
37.5m
Theoretical Pumping Pressure
12MPa
Engine Model
D13c6-480e0
Emission Standards
Stage VI
Transport Package
Nude Packing
Specification
1381*2550*3960mm
Trademark
NEWINDU
Origin
China(Hunan)
HS Code
8705909100
Production Capacity
50000sets/Year
Product Description
Product DescriptionTruck Mounted Folded Boom Pump 53m Concrete Pump Truck Special Chassis SYM5365THBFS 530S with 6 Section RZ Boom In Stock
Feasures The SYM5365THB 530S concrete pump truck is equipped with more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology. It adopts great chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance. Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Parameters
| Model | Unit | SYM5365THBFS 530S | ||
| Vehicle parameters | Overall length | mm | 13810 | |
| Overall width | mm | 2550 | ||
| Overall height | mm | 3960 | ||
| Total weight | kg | 36000 | ||
| Boom leg parameters | Boom vertical height | m | 52.2 | |
| Boom horizontal length | m | 45.9 | ||
| Boom vertical depth | m | 37.5 | ||
| Minimum unfolded height | m | 14.9 | ||
| The first section boom | Length | mm | 10485 | |
| Corner | 89° | |||
| The second section boom | Length | mm | 6870 | |
| Corner | 180° | |||
| The third section boom | Length | mm | 7875 | |
| Corner | 180° | |||
| The fourth section boom | Length | mm | 11120 | |
| Corner | 230° | |||
| The fifth section boom | Length | mm | 6400 | |
| Corner | 210° | |||
| The sixth section boom | Length | mm | 5420 | |
| Corner | 100 | |||
| Turntable rotation angle | ±360° | |||
| Expansion width of front outriggers | mm | 9665 | ||
| Rear outrigger expansion width | mm | 10678 | ||
| Pumping system parameters | Theoretical displacement of concrete | m³/h | 180 | |
| Theoretical pumping pressure | Mpa | 12 | ||
| Theoretical pumping times | times/min | 29 | ||
| Conveying cylinder inner diameter | mm | 260 | ||
| Conveying cylinder stroke | mm | 1900 | ||
| Hydraulic system | Open | |||
| System oil pressure | Mpa | 40 | ||
| Fuel tank capacity | L | 820 | ||
| Water tank volume | L | 620 | ||
| Conveying pipe diameter | mm | 125 | ||
| End hose length | m | 3 | ||
| End hose diameter | mm | 125 | ||
| Chassis parameters | Chassis brand | Sanny | ||
| Chassis model | SYM5360THB1F | |||
| Engine model | D13C6-480E0 | |||
| engine maximum net power | kW/rpm | 348/1900 | ||
| Emission Standards | Stage VI | |||
| fuel tank volume | L | 600 | ||
| Displacement | ml | 12.94 | ||
| Maximum speed | km/h | 90 | ||

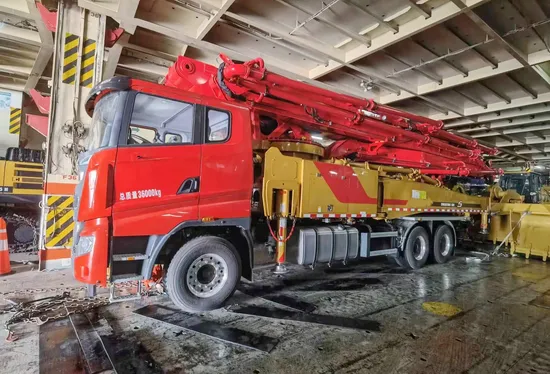

Detailed Photos
