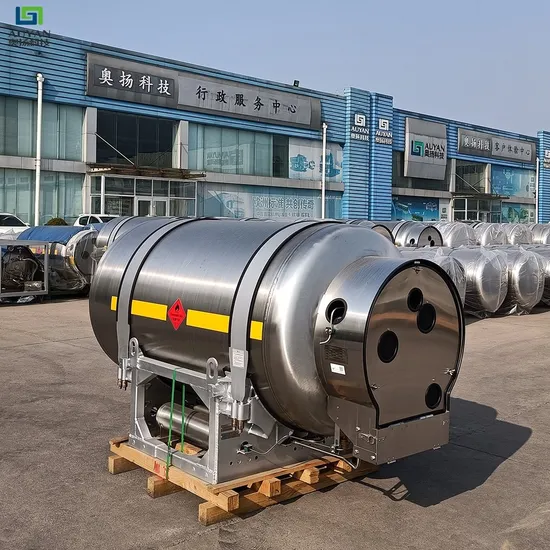

Stainless Welded Storage Tank Cryogenic LNG Cylinders for Vehicles

Product Description

Product Description Product advantages:
1. Long term heat preservation: high vacuum degree, low exhaust frequency, two years vacuum guarantee, better
than competitors
2. High Safety: There is no leakage while using. It is not dangerous when being baked in the fire for 40 mins, dropping down from 10 m height, hit by 100km/h. The gas cylinder frame fits the special installation requirements of the LNG
automobiles and adapts to any complex conditions.
3. High stability: The gas cylinder output pressure in the gas supply system and matching degree of the valves is more stable
Product Parameters

V(l)	500L	500L-I	750L	850L	995L	995L-I
OD(mm)	φ658	φ708	φ858	φ858	φ858	φ908
L(mm)	2102	1833	1902	2106	2329	2168
NW(Kg)	265-275	265-275	400-403	440-443	490-493	490-493
Max Filling Weight(Kg)	190	190	250	282	330	330
Weight With LNG(Kg)	455--465	455-465	650-653	722-725	820-823	820-823
Continuation of Journey(Km)	485-530	485-530	710-780	800-880	940-1000	940-1000
System Assembly Weight(Kg)	≈720	≈732	≈918	≈987	≈1082	≈1082
Notes	High capacity LNG gas cylinder can meet the limited weight requirements for heavy truck

Packaging & Shipping Packing with wooden box and shipping method can be negotiated.
Company Profile
Established in June 2011, located in Weifang City, Shandong Province, Shandong AUYAN New Energy Technology Co., Ltd. is an innovative enterprise specialized in manufacturing cryogenic equipment and providing technical service.
The main products are industrial welded insulated cylinders, vehicles intelligent LNG cylinders, small-sized LNG supplying systems, and biological liquid nitrogen tanks. AUYAN is one of the leaders in the Chinese new energy industry.
Abides by the core values of "Respect, Unity, Integrity, Innovation" and takes "building the company to be a happiness platform with all staff, to create, share and realize the ideal of life, And contributing to social development and human progress'' for the mission, AUYAN continues breaking through and innovating, insists on sustainable development, determines to become the leader in global new energy revolutionary.
FAQ If you have questions about AUYAN® products, here's where you can find the answers. If you don't find the answer to your question here, please contact us by telephone or email.
Q: Application of insulated welded cylinders (Dewars)?
A: AUYAN supplies dewars to safely contain liquefied gases such as nitrogen, oxygen, argon, and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.
Q: How many different specifications of insulated welded cylinders (Dewars) does AUYAN have?
A:We produce Insulated Welded Cylinders (Dewars) with 6 different specifications: 175 L (Net Capacity 161 L, 67 kg*), 195 L (Net Capacity 179 L, 75 kg*), 210 L (Net Capacity 193 L, 81 kg*), 410 L (Net Capacity 377 L, 158 kg*), 450 L (Net Capacity 414 L, 173 kg*), 499 L (Net Capacity 459 L, 192 kg*)
*The weights above are counted under the circumstance that the density of the cryogenic liquid is 0.42 kg/L.
Q: What is the ideal working pressure of the LNG Vehicle cylinder?
A: The ideal working pressure is 0.8 Mpa - 1.2 Mpa, while the nominal working pressure is 1.59 Mpa.
Q: What is the warranty of your Products?
A: The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1-year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
Q: What trade terms can you apply in the contract?
A: EXW, FOB, and CIF are the regular terms we use.
Q: What are some methods of payment?
A: T/T, L/C, as well as Paypal are supported.
