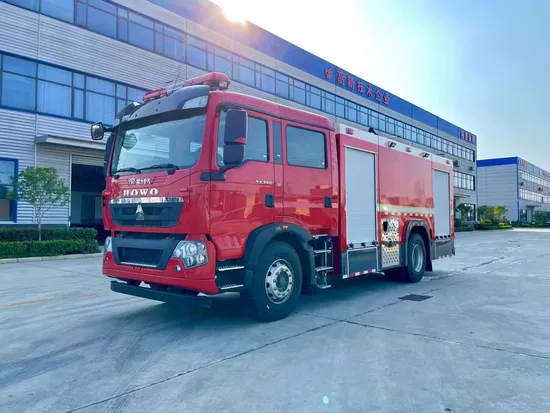

HOWO Rescue Foam Water Tank Tanker Firefighting Engine Fighting Truck Engine Fire Truck

Product Description

Product Description Fire fighting truck also known as a rescue truck, is a vehicle designed and manufactured to be used by firefighters as needed, equipped with various types of firefighting equipment or extinguishing agents, and used by firefighting forces for firefighting, auxiliary firefighting or fire rescue. Most national fire departments in China also use them for other emergency rescue purposes. Fire engines can transport firefighters to the scene of a disaster and provide them with a variety of tools for performing disaster relief tasks. Modern fire trucks are usually equipped with steel ladders, water guns, portable fire extinguishers, self-contained breathing apparatus, protective clothing, demolition tools, first aid tools and other equipment, some of which also carry large fire-fighting equipment such as water tanks, pumps and foam fire-fighting devices. The appearance of fire trucks in most areas is red, but there are also some areas where the appearance of fire trucks is yellow, some special fire trucks, which usually have alarm bells and sirens, warning lights and flashing lights on top. Common types of fire trucks include water tanker, foam fire truck, pump fire truck, aerial platform fire truck, ladder fire truck, etc.

Technical parameter
Water tank DongFeng Fire Fighting Truck

Vehicles Parameters
Dimensions	Length/mm			6800
	Width/mm			2400
	Height/mm			3350
	Wheelbase/mm			3.950/4500
	Front/Rear Thread/mm			1835/1640
	Approach/Departure Angle/°			20/13
	Front/Rear Overhang/mm			1180/1715
Chassis	Brand			Dongfeng
	Driven Mode			2x4, LHD
	Front Axle Load/kg			5000
	Rear Axle Load/kg			10000
	Braking System			Air Break
	Tyre			10.00
	Gear Box			8forwards 1 backward
	Max Speed/ km/h			95
	Beam			252/7+5mm Cross Beam
Cab	3+3 passengers
Engine	Model				commins
	Horsepower/HP				160
	Displacement/L				4
	Max Torque				680N·m
	Speed at Max Torque/rpm				1900
Fire Fighting System
Fire Pump	Model		CB10/45
	Flow/ L/s		35
	Pressure/MPa		1.0
	Water Suction Time/s		Less than 35(when height is 7m)
	Installation Mode		Rear-mounted
Fire Monitor	Model		PS35
	Pressure/MPa		1.0
	Flow/ L/s		40
	Range/m		More than 60
	Horizontal Rotating Angle/°		360
	Pitching Rotating Angle/°		-30~80
	Operation Mode		Manual
Pipeline Systems	Internal Inflow Pipe		One pc φ125mm pipe with one pc φ125mm flygate
	External Inflow Pipe		Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
	Water Outlet Pipe		-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves -One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
	Water Injection Pipe		-One pc φ50mm internal water injection pipe -One pc φ65mm external water injection pipe
	Cooling Water Pipe		Equipped with stainless steel ball valve
	Drain Pipe		In the lowest position of the pipe
Water Tank	Loading Capacity/kg		4000
	Material		Quality Carbon Steel Plate
	Thickness		Baseboard and Endplate: 4mm Side plate and top plate: 3mm
	Structure		Welded Type, Anti-swing Plate Inside -One Manhole, with fast lock & unlock device -One Overflow Device -One Level Indication Device -One Drain Hole, controlled by manual valve
Electrical System	-Above the driving room are lightbar & 12V/60W fire scene light -Above both sides of the vehicle are two flash lights -100W alarm light -Switches of all the lights, alarms and pumps on the control panel.
Foam Tank	Structure	Connected
	Capacity/kg	1000
	Material	Quality
	Base: Side Plate: Anti-swing Plate	4:4:3
	Other Detail	-One Manhole, with fast lock & unlock and pressure-release device -One Overflow Device: DN50mm -One Drain Hole with ball valve: DN40
Powder Cylinder	Power System	Including Pressed Nitrogen and Burned Gas
	Capacity/kg	2000

Items		Technical parameters
1	Tank capacity	Water	≥ 4.000 Kg
2	Fire pump model	CB10/35XZ
3	Fire pump performance	Operating condition	Pressure:1.0Mpa;1.6Mpa;
			Flow:35L/S;35L/S
4	Fire pump layout	Rear-mounted
5	Number of fire pump outlets	4
6	Pressure gauge	0-2.5Mpa
7	Vacuum gauge	-0.1- 4 MPa
8	Fire Monitor:flow rate, range and rated injection pressure(PL48-64D)	Water	≥50m@1.0Mpa
		Pitch angle	Elevation:≤70°
			Depression:≥-15°
		Turning angle≥360°

Detailed Photos

The company's main products are all kinds of water tank, foam,dry powder fire truck, emergency rescue fire truck, multifunctional lighting fire truck, high platform fire truck, held high jet fire truck, strong arm forcible entry multifunctional fire truck, city battle fire truck, strong eject smoke fire truck and super-high water supply and other kinds of special trucks. In addition, the company has developed the city emergency water supply and drainage equipment, fire foam liquid remote delivery system, satellite communication command vehicle, ligh-duty high-mobility, emergency fuel truck for group vehicles, municipal drainage trucks, ambulance cars and other series products.

No.	Series	Products
1	Remote water supply system	pumping Fire engine
		Hose laying fire truck
2	Remote foam liquid delivery system	Foam liquid delivery truck
		Foam concentrate distribution vehicle
3	Large flow foam fire truck	Large flow foam fire truck
4	Fire truck series	Light type water/foam fire truck series
		Midium type water/foam fire truck series
		Heavy type water/foam fire truck series
		Urban main battle fire truck series
		Compressed air supply fire fighting vehicle series
		Water tower fire truck series
		Dry powder foam fire truck series
		Earthquake rescue fire truck series
		Rescue fire truck series
		Arm-pulled emergency rescue module vehicles series
5	Light-duty High-mobility vehicle series	Dongfeng mengshi chassis Communication and command vehicle
		Dongfeng mengshi chassis Technical rescue vehicle
		Dongfeng mengshi chassis Laying unit fire truck
		Dongfeng mengshi chassis Water cannon unit fire truck
		Dongfeng mengshi chassis Pump unit fire truck
6	Other special vehicle series	Propaganda fire vehicle
		Ford transit ambulance series-Monitoring ambulance

Other products
