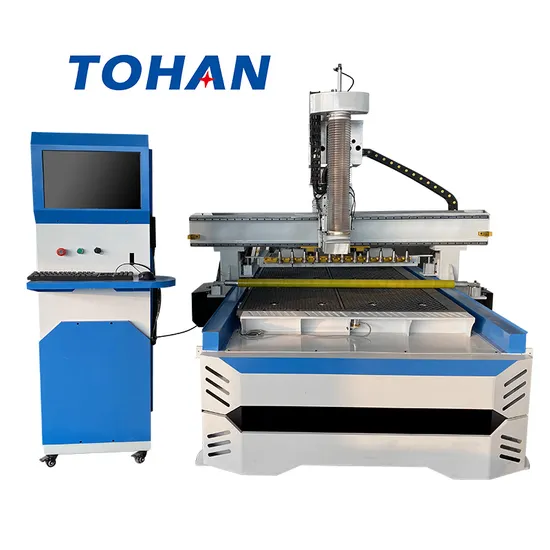

Acrylic MDF Furniture Cabinet Wood/Woodworking Engraving/Craving 3 Axis 5 Axis 1325/1530/2030/2040 3D Milling and Cutting Drilling CNC Router Machine

Product Description

We are factory, not a distributor. We have our own workshop and accept equipment customization with favorable price.

Features
1)Function: 9kw air cooled spindle, fast tool change speed, suitable for efficient cutting, slotting, milling and other processing of panel furniture; 2) Structure: Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy; 3) Accuracy: Excellent accessories and sophisticated detection devices enable the product to obtain perfect positioning and running accuracy; 4)High speed: high-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency; 5) Simple operation: compared with the traditional cutting method, only one person is required to operate, and even one person can operate multiple devices with simple operation and high efficiency. The design of the machine control interface is user-friendly, and the operator can start work after simple training.
Technical parameter

Processing table size	2800×1300mm	Spindle speed	24000rpm/min
Weight	2600kg heavy-duty body	Driving method	1.5KW pure servo motor, Sino-German joint venture MIG
Dimension	4000×2300×2200mm	Inverter	11KW Japan Fuling
Rack	1.5M Taiwan high precision rack	Control system	Taiwan LNC
Porcessing speed	30m/min	Spindle	HQD 9KW air-cooled spindle * 1
Positioning accuracy	±0.01mm	Reducer	Japan SHIMPO
Working command	G code in NC format	Tool magazine capacity	12/16 knives for quick knife change
Operating voltage	Customizable	Processing table type	High strength vacuum adsorption table with two press rollers
Work area	7 adsorption areas	Locate mode	automatic cylinder positioning

Detail
Control system
Visual control panel, reasonable layout, simple operation, convenient and quick.
12 knives switch automatically
12 knives are automatically switched, which can complete cutting, slotting, punching, engraving and hollowing at one time, saving time and high efficiency.
High power pure servo motor
High power 1.5KW, high speed, high torque and high precision.
Heavy structural body
The machine is its own factory cut welding. The machine passes through the five-sided milling machining center in one machining. Heavy body, machine weight 2600kg.

Vacuum adsorption table
The thickened vacuum adsorption table has large holes and strong adsorption force. The lengthened table has one more adsorption area than the traditional cutting machine.(7 vacuum adsorption zones)
Guide rails
Taiwan High precision X axis 25, Y axis 30. Horizontal structure of machine guide rail, not side hanging, long time to ensure the machining accuracy of the machine.
Application
1.Board type furniture, custom-made furniture, ambry wardrobe, office furniture, tatami, computer desk, wooden sound box, wooden cabinet, cabinet door move door, blister door, indoor door, wooden door and other different processing.
2.Advertising: Advertising signs, logo making, acrylic cutting, plastic molding, engraving on a variety of advertising decorative products materials. 3.Other industry: relief, widely used in craft gifts industry, Aluminum industry, Cutting aluminum, aluminum composite panel, aluminum honeycomb panels, aluminum profile, 3D ornamental engraving process, wave board production, LED, neon trough literal cutting, plastic mold making light box . Acrylic, copper, PVC board, artificial stone, MDF board and other types of sheet processing.
Machine processed products

Company Profile
Qingdao Tuohan Intelligent Technology Co., Ltd. is a scientific and technological knowledge-intensive enterprise specializing in the production of woodworking machinery . It is a member of Qingdao Woodworking Machinery Association. After 21 years of development, we have strong technical force and perfect testing methods, as well as advanced technical advantages. Our factory has passed ISO9001 international system certification, and our main products have passed CE safety certification.
