Telo Motor Factory Eff1 110V Ml/My High Efficiency Single Phase Asynchronous Motors

Product Description

Product Description

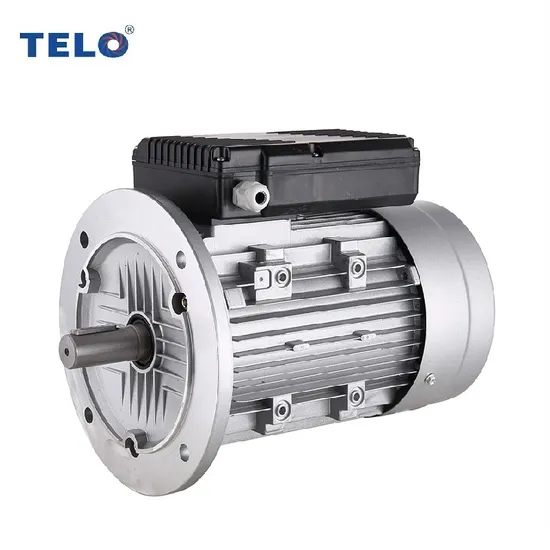

Telo Motor Factory Eff1 110V ML/MY High Efficiency Single Phase Asynchronous Motors
ML/MY series single phase motors, one of our latest developed products, applied European standards. The motor terminal box is made of engineering plastics. It has a beautiful modeling, compact structure, and lightweight. ML/MY series single-phase electric motors have a lot of advantages including high efficiency, large starting torque, especially YL series with starting torque one time higher than standard Chinese motors, excellent performance, low noise and vibration, and so on. The mounting dimension and power rate conform to the IEC standard. They are widely used on small machinery such as reducers, air conditioners, pumps, medical equipment, etc. They are particularly suitable for sites with single-phase power.

Description	Standard
Type	Squirrel cage, Totally Enclosed Fan Cooled, TEFC, Induction motor
Power Rating	0.55 to 3 kW; 2,4 Poles
Efficiency	IE2
Frame size	80 to 100 mm
Frame materials	cast iron body
Enclosure	IP 54 or IP 55
Cooling method	IC411
Insulation class	Class F
Rated voltage	110V, 220V, 230V, 240V
Frequency	50Hz/60Hz
Direction of rotation	Bi-directional
Terminal box	Top
Ambient temp.	-15ºC to +40ºC
Altitude	Below 1000m sea level
Performance Duty	S1, continuous duty, standard
