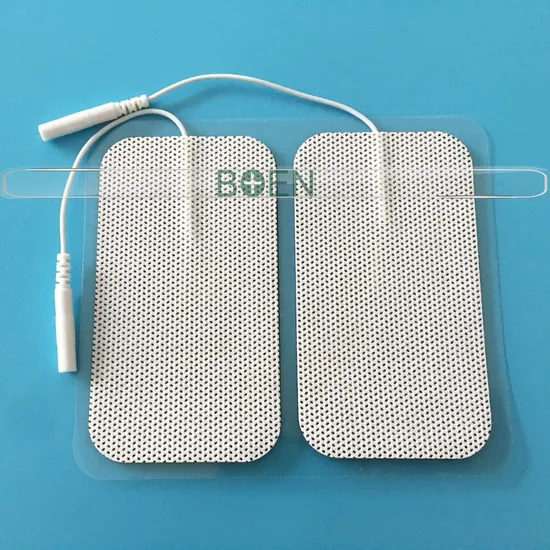

Tens Electrodes 5X9cm Rectangular Replacement Tens Unit Pads for Electrotherapy EMS Massage

Product Description

Tens Electrodes 5X9cm Rectangular Replacement Tens Unit Pads for Electrotherapy EMS Massage
Product Description

Product Name	5*9mm Electrode Pads
Item No.	BE-TE-0013A
Size	50*90mm
Backing Material	Laminated White Fabric (Non-woven Cloth)
Electrode Conductor	Super Conductive Carbon Film
Hydrogel	Bio-compatible Conductive Hydrogel
Connector	Pre-wired type
Shape	Rectangle
Application	use with TENS, EMS, IF Units etc.
Logo Print	on the paper insert, plastic bag or electrode's backing
Packing	2/ 4pcs per polybag ,400pcs per small carton, 1600pcs per carton
Carton Dimension	47*29*41cm
G.W/N.W	19Kgs / 17Kgs
MOQ	3200Pcs
Certificate	CE & ISO13485

5*9cmm electrode pads are designed to be connected with TENS or EMS for pain relief or muscle training, massage etc, compatible with TENS, EMS, IF and other electro-stim.
Medical-use white cloth backed with carbon conductor and Hydrogel, connect with TENS machine by pigtail or button.
There is no residue of our pads, pad's edge is very tidy and neat.
Product Features:
Superior conductivity, low impedance, minimize the risk of hot spot and burns, make the patient feel more comfortable, and raise the tolerance.
High quality hydrogel very sticky, no irritation and best performance of reusability. Good adhensive character ensures the electrode can be attached firmly on any part of the body.
Best material of backing, gel, carbon film make the product soft and comfortable, and very strong at the same time.
Soft cloth, foam, tricot, white or other colors backing for select.
Pigwire and snap connection optional.
Elastic socket fit male pin size from 1.95 to 2.15mm.
Water base gel makes it skin friendly and allergy free.
Various sizes and shapes are available.
Shelf life span: 3 years, will not turn yellow.
Latex free, biocompatible.
Instruction for use:
This product is for single patient's use.
Clean and dry skin as needed, pads do not stick well if any oil, makeup, lotions etc. is left on skin.
Remove the electrode pads from the protective release liner and apply to exact skin position(this should be determined by therapist), then save the release liner.
Do not pull on the pig wires when removing the pads.
After treatment, turn off the TENS or EMS device firstly then disconnect the pads with lead wire. Put pads onto release liner then pack into poly pouch, seal the pouch.
Application:
• For TENS: Transcutaneous Electrical Nerve Stimulator
• For EMS: Electrical Muscle Stimulator
• For IF: Interferential Apparatus
• For PGF: Pulse Galvanic Stimulator
Product Material:
Gel: biocompatible, no latex, allergy free
Conductive layer: high quality conductive carbon film
Backing: non-woven cloth/foam/PET
Product Advantages:
America & Japan imported bio-compatible Hydrogel,
Fast application and easy handling and removal;
Ultra-flexible, highly conductive carbon film
Premium longer-lasting gel for countless re-applications
Soft and gentle gel for comfortable application and removal
Durable universal pig-tail wire with high pull-strength
Ideal for all climate conditions, even in humidity
Strong tacky adhesive;
Low impedance and high conductivity;
Self-adhering and reusable;
Various styles and shapes for each use
Any Shapes & Various Sizes are Available!!!

Size	50*50mm (2" × 2"), 50*100mm (2" × 4"), 50*90mm, 40*40mm, 60*90mm, 80*130mm etc.
Backing Material	Cloth or Foam etc.
Electrode Conductor	Conductive Carbon Film, Carbon/ Silver
Hydrogel	Bio-compatible Conductive Hydrogel
Connector	Pre-wired type or Snap type
Shape	Square, Rectangle, Round, Palm etc.
Application	use with TENS, EMS, IF Units etc.
Logo Print	on the paper insert, plastic bag or electrode's backing
