Silinman 6W-7.5kw Single Phase Three Phase AC Gear Motor

Silinman 6W-7.5kw Single Phase Three Phase AC Gear Motor

US$50.00 5 Pieces (MOQ)

Basic Info.

Number of Stator
Single Phase, Three Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2,4
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC, CE
Brand
Silinman
Transport Package
Paper Carton, Wooden Carton
Trademark
Silinman
Origin
Zhejiang Province, China
HS Code
8501410000
Production Capacity
2000000PCS/Year

Product Description

Silinman AC Gear Motor 1)Micro AC Gear Motor
2)Small AC Gear Motor
3)R, F, K, S Gear Motor
Micro AC Gear Motor=Micro AC Motor(Induction motor, reversible motor,torque motor)+Gearbox(Reducer) Micro AC Motor type:
1)Induction motor, with working form,S1-continuous working;
2)Reversible motor, with working form S2-30min working;
3)Torque motor,
Motor Size:60mm,70mm,80mm,90mm,104mm,120mm
Motor Power:6w,10w,15w,25w,40w,60w,90w,120w,140w,180w,200w,250w,300w,370w,400w,750w,1.5kw
Motor Voltage:AC,1phase110v,1phase220v,1phase230v,3phase220v,3phase380v,3phase220v/380v,and other customized voltages
Motor Poles and Speed:4P,1400rpm/50Hz;1680rpm/60Hz(2P is available)
Motor accessories:electromagnetic brake,terminal box,thermally protection,fan
Output shaft:round shaft,gear shaft
Rotation direction:CW,CCW

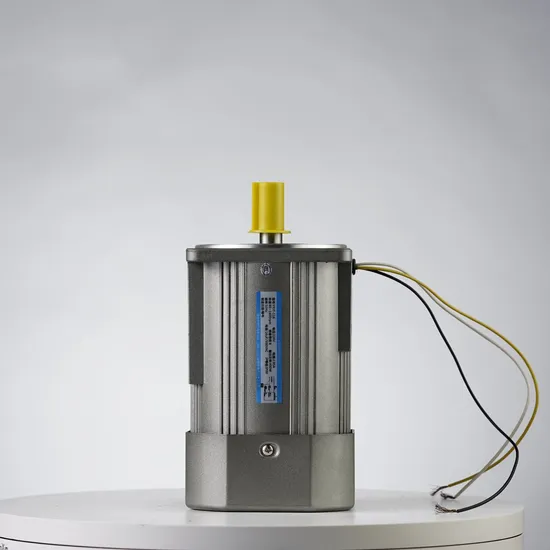

Micro AC Motor with round shaft
Micro AC Motor with gear shaft
Motor
Code Size Power Single phase Three phase 3 wires Three phase 6 wires Terminal junction box
Constant speed Speed regulation Thermally Brake Damping Thermally Brake Damping Thermally
Brake Damping Brake Damping
4 80mm 25w √ √ √ √ √ √ √ √ √ √ × √
40w √ √ √ √ √ √ √ √ √ √ × √
5 90mm 40w √ √ √ √ √ √ √ √ √ √ × √
60w √ √ √ √ √ √ √ √ √ √ ×
90w √ √ √ √ √ √ √ √ √ √ ×
120w √ √ √ √ √ √ √ √ √ √ ×
140w √ √ √ √ √ √ √ √ √ √ ×
180w √ √ √ √ √ √ √ √ √ √ ×
6 104mm 180w √ √ √ √ √ √ √ √ √ √ × √
200w √ √ √ √ √ √ √ √ √ √ ×
250w √ √ √ √ √ √ √ √ √ √ ×
300w √ √ √ √ √ √ √ √ √ √ ×
370w √ √ √ √ √ √ √ √ √ √ ×
7 120mm 400w √ √ √ √ √ √ √ √ √ √ × √
550w √ √ √ √ √ √ √ √ √ √ × √
750w √ √ √ √ √ √ √ √ √ √ ×

Gearbox type:GK,GS,90mm five-stage
Gearbox size:60mm,70mm,80mm,90mm,104mm,120mm
Gearbox ratio:2K-750K
Decimal middle gearbox:10X
Gear Reducer
Code Size 10X middle gearbox Normal type GK Gearbox
Output shaft/key width Ratio
2 stage transmission 3 stage transmission 4 stage transmission
2 60mm can customize round shaft Φ8/Φ10 Φ8 milling 7, Φ10 key 4 2k,2.5k,3k,3.6k,4k,5k,6k,7.5k,9k,10k,12.5k,15k, 18k 20k,25k,30k, 36k,40k 50k,60k,75k,80k,90k,100k,120k,150k,180k,200k,250k,300k
3 70mm can customize round shaft Φ10/Φ12 Φ10 key 4 2k,2.5k,3k,5k,6k,7.5k,9k,10k, 12.5k,15k,18k 20k,25k,30k, 36k,40k,50k 60k,75k,90k, 100k,120k,150k,180k,200k,250k
4 80mm can customize round shaft Φ10/Φ12 Φ10 key 4 2k,2.5k,3k,5k,6k,7.5k,9k,10k, 12.5k,15k,18k 20k,25k,30k, 36k,50k 60k,75k,90k, 100k,120k,150k,180k,250k,300k
5 90mm can customize round shaft Φ10/Φ12/ Φ15 Φ12 key 4 Φ15 key 5 2k,2.5k,3k,3.6k,5k,6k,7.5k,9k, 9.5k,10k, 12.5k 15k,18k,20k, 25k 30k,36k,50k,60k,75k,90k,100k, 120k,150k,180k,250k,300k,400k,500k,600k,750k
6 104mm can customize round shaft Φ12/ Φ15/Φ18 Φ15 key 5 Φ18 key 6 2k,2.5k,3k,3.6k,5k,6k,7.5k,9k, 9.5k,10k, 12.5k 15k,18k,20k, 25k,30k,36k, 50k 60k,75k,90k, 100k,120k,150k, 180k,250k,300k, 400k,500k,600k, 750k
7 120mm can customize round shaft Φ22/ Φ25 Φ22 key 6 2k,2.5k,3k,3.6k,5k,6k,7.5k,10k, 12.5k 15k,18k,20k, 25k,30k 40k,50k,60k,75k,90k,100k,120k,150k,180k,200k,250k

Gearbox type: Right Angle Gearbox(Hollow center, Solid output shaft ceneter, Hollow eccentric,Solid output shaft eccentric)
Gearbox size: 60mm,70mm,80mm,90mm,104mm,120mm
Gearbox ratio:2K-2250K
Right Angle Gear Reducer
Code Size Output shaft diameter Gear Ratio
Hollow Center Solid Center
Standard non-standard Standard non-standard
4 80mm Φ15 × Φ12 × 6k,7.5k,9k,15k,18k,23k,27k,30k, 37.5k,45k,54k,60k,75k,90k,108k, 150k,180k,225k,270k,300k, 360k,450k,540k,750k,900k
5 90mm Φ17 Φ15,Φ20 Φ15 × right angle center(spiral bevel gear) right angle eccentric(worm gear) 2.5k,3k,3.6k,5k,6.25k,7.5k,9k, 12.5k,15k,18k,23k,25k,31k, 37.5k,45k,50k,62.5k,75k,90k, 125k,150k,188k,225k,250k, 300k,375k,450k,625k,750k, 1000k,1250k,1500k,1875k
6 104mm Φ22 Φ17,Φ20, Φ24,Φ25 Φ22 Φ20 6k,7.5k,9k,15k,18k,23k,18k,30k,37.5k,45k,54k,60k,75k,90k,108k,150k, 180k,225k,270k,300k, 360k,450k,540k,750k,900k, 1200k, 1500k,1800k,2250k
7 120mm Φ30 Φ22,Φ20, Φ28 Φ30 Φ22 6k,7.5k,9k,11k,15k,18k,23k,30k,37.5k,45k,54k,60k,75k,90k,120k,150k, 180k,225k,270k,300k, 360k,450k,540k,600k,750k
Small AC Gear Motor Motor type:GH(Horizontal foot mount),GV(Vertical flange mount)
Motor power:100w,200w,400w,550w,750w,1100w,1500w,2200w,3000w,3700w,4000w,5000w,5500w,7500w
Motor voltage:single phase 110V,single phase 220V,3phase 220v/380v, and other customized voltages
Gearbox ratio:2.5K-200K
Middle gearbox ratio:250K-10000K
Small AC Motor Gearbox(Reducer) Gear Ratio
Stator diameter Remarks Power Configuration Output shaft diameter Box style 2 stage 3 stage
3phase 110mm 100w,200w,400w normal, brake,independant fan 18mm(key 5mm,6mm) 3K,3.6K,4K,5K,6K,7.5K,9K,10K,12.5K,15K, 18K,20K,25K,30K 40K,50K,60K,84K, 100K,108K,125K,150K,180K,200K
1phase 100w,200w,400w normal, brake,independant fan
3phase 110mm 100w,200w,400w normal, brake,independant fan 22mm(key 6mm,7mm) Horizontal A style; Horizontal B style; Vertical A style; Vertical B style square flange; vertical C style round flange 2.5K,3K,3.6K,5K,6K,7K,10K,12.5K,15K,18K, 20K,25K,30K,36K 40K,50K,60K,75K,84K,96K,107K,120K,160K,180K,200K
140mm shrink frame type 400w,550w,750w normal, brake,independant fan
1phase 110mm 100w,200w,400w normal, brake,independant fan
140mm shrink frame type 400w,550w normal, brake,independant fan
750w normal, brake,independant fan,off core switch
3phase 110mm 200w,400w normal, brake,independant fan 28mm(key 7mm,8mm) Horizontal A style; Horizontal B style; Vertical A style; Vertical B style square flange; 2.5K,3K,4K,5K,6K,7K, 7.5K,10K,13K,15K, 17.5K,20K,25K,30K 36K,40K,50K,60K,70K,80K,90K,100K,108K, 120K,135K,150K,160K,180K,200K
140mm 400w,550w,750w,1100w normal, brake,independant fan
160mm shrink frame type 1500w,2200w normal, brake,independant fan
1phase 110mm 200w,400w normal, brake,independant fan
140mm 400w,550w normal, brake,independant fan
750w normal, brake,independant fan,off core switch,brake+off core switch
1100w normal, brake,independant fan,off core switch
160mm shrink frame type 1500w,2200w normal, brake,independant fan,off core switch
3phase 140mm 400w,550w,750w,1100w normal, brake,independant fan 32mm Horizontal A style; Horizontal B style; Vertical A style; 3K,4K,5K,6K,7K,8K,9K,10K,12.5K,15K,18K, 20K,25K 30K,36K,40K,50K,60K,70K,75K,80K,100K, 108K,125K,160K,180K,200K
160mm 1500w,2200w normal, brake,independant fan
1phase 140mm 400w,550w normal, brake,independant fan
750w normal, brake,independant fan,off core switch,brake+off core switch
1100w normal, brake,independant fan,off core switch
160mm 1500w,2200w normal, brake,independant fan,off core switch
3phase 140mm 750w,1100w normal, brake,independant fan 40mm Horizontal A style; Vertical A style 3K,4K,5K,6K,7K,8K, 10K,12.5K,15K,18K, 20K,25K 30K,40K,50K,60K,75K,80K,90K,100K,120K, 140K,160K,180K,200K
160mm 1500w,2200w normal, brake,independant fan
180mm 3000w,3700w,5000w normal, brake,independant fan
1phase 140mm 750w,1100w normal, brake,independant fan,off core switch
160mm 1500w,2200w normal, brake,independant fan,off core switch
3phase 160mm 1500w,2200w normal, brake,independant fan 50mm Horizontal A style; Vertical A style 3K,4K,5K,6K,7.5K,9K, 10K,12.5K,15K,18K, 20K,25K,30K 40K,50K,60K,75K,80K,90K,100K,110K,125K,140K,180K,190K
180mm 3000w,3700w,5000w normal, brake,independant fan
210mm 5000w,5500w,7500w normal, brake,independant fan
1phase 160mm 1500w,2200w normal, brake,independant fan,off core switch

R,F,K,S Gear Motor
1)R Helical Geared Motor
R(foot mounted):R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167
RF(flange mounted):RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167
RX(foot mounted):RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107
RXF(flange mounted):RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
Can match: ac motor from power 0.12kw to 160kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
2)F Parallel Shaft-Helical Geared Motor
F(foot mounted ):F37,F47,F57,F67,F77,F87,F97,F107,F127,F157
FA(foot mounted with hollow shaft):FA37,FA47,FA57,FA67,FA77,FA87,FA97,FA107,FA127,FA157
FF(B5 flange mounted):FF37,FF47,FF57,FF67,FF77,FF87,FF97,FF107,FF127,FF157
FAF(B5 flange mounted with hollow shaft )FAF37,FAF47,FAF57,FAF67,FAF77,FAF87,FAF97,FAF107,FAF127,FAF157
Can match: ac motor from power 0.12kw to 200kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
3)K Helical-Bevel Geared Motor
K(foot mounted):K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
KA(foot mounted with hollow shaft):KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187
KF(B5 flange mounted):KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187
KAF(B5 flange mounted with hollow shaft):KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187
Can match: ac motor from power 0.12kw to 200kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
4)S Helical-Worm Geared Motor
S(foot mounted):S37,S47,S57,S67,S77,S87,S97
SA(foot mounted with hollow shaft):SA37,SA47,SA57,SA67,SA77,SA87,SA97
SF(B5 flange mounted):SF37,SF47,SF57,SF67,SF77,SF87,SF97
SAF(B5 flange mounted with hollow shaft):SAF37,SAF47,SAF57,SAF67,SAF77,SAF87,SAF97
Can match: ac motor from power 0.12kw to 22kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
