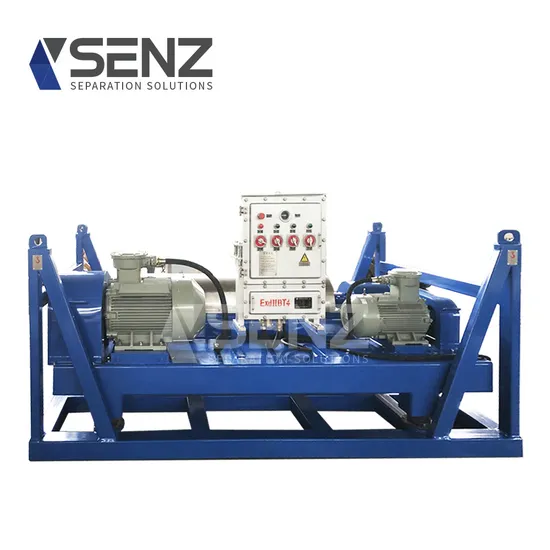

Chemical Sludge Oilfield Drilling Fluids Decanter Centrifuge for Wastewater Treatment

Product Description

Product Description LWD series Centrifuge for separation of detrital material of drilling muds is widely used in solid control system for drilling mud to separate the solids phase of mud, remove harmful fine drill solids such as debris, etc. in the mud fluid, or recover weighting materials such as barite etc. so as to reduce the cost of mud fluid. Circumstance Conditions: Explosion protection Grade: Exd II BT4 Ambient temperature: -20°C~+50°C Relative humidity of ambient air: ≤95% Corrosive environment: No active gas or steam that will destroy the metal Degree of electrical protection: IP55
Horizontal spiral discharge sedimentation centrifuge (referred to as decanter centrifuge) is an effective separation equipment which use centrifugal acceleration generated by high-speed rotation into the acceleration of gravity to shorten thousands of times of the settlement time of solid particles than in the gravity field. The solid particles are discharged from the drum through the screw conveyor continuously and without interruption. Centrifuge Drum and spiral parts titanium welding with 304/316 / 316L/321 stainless steel, stale performance and long service, warmly welcomed by the customers at home and abroad. Details
Reference standard
Technical parameter

Model	LWD450*1000	LWD450*1250	LWD355*1250-1	LWD355*1250-2
Bowl diameter	450mm	450mm	355mm	355mm
Bowl Length	1000mm	1250mm	1250mm	1250mm
Bowl speed	220rpm	3200rpm	3200rpm	320rom
Max Capacity	50M3/H	50M3/H	40M3/H	40M3/H
G-Force	815	2035	2035	2035
Gear box speed	40r/min	30r/min	30r/min	30r/min
Gear box ratio	35:1	57:1	57:1	57:1
Main motor power	30kw	37kw	30kw	37kw
Auxiliary motor	7.5KW	7.5KW	7.5KW	7.5KW
EX Standard	EddIIBt4/IECEX/A-TEX
Weight	2700kg	3200kg	2900kg	3200kg
Dimension	2900*1900*1750mm	2600*1860*1750mm	2600*1620*1750mm	2600*1620*1750mm

If you want to know more please contact me
Large conveying torque:
Imported hydraulic pump and motor are adopted to achieve variable speed, big conveying torque and speed and reliability; the hydraulic differential speed conveying torque can be adjusted automatically according to the actual working condition.
Automatical control:
The centrifuge has switch of pressure, vibration, temperature, tec. Which can monitor. start and stop feed pump automatically. Strong adaptability:
The system can adjust pressure according to load and can treat mud with with different character. The hydraulic centrifuge overcomes the disadvantages of the conventional driving mode, improves separation speed scope, separation precision and adjustment to character change.
Long service life:
The imported hydraulic control system can serve more than 10 years. The screw conveyor is plastered hard alloy to have perfect wear resistance.
