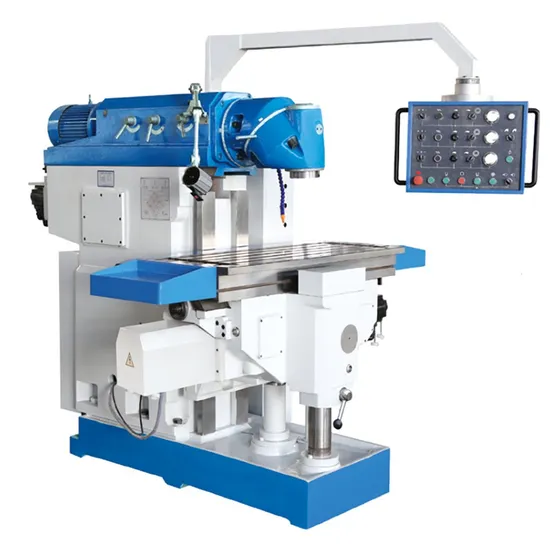

X5746 RAM Milling Machine CNC Machine Is Optional

Product Description

Product Description
It can mill any angle surface through front half-sphere by swivelling milling head Table 3 axes with ball screws, high precision
Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
Mechanical change speeds in headstock, powerful milling
Table with an extra supporting column, big load, high accuracy
CNC machine is optional
Product Parameters

Specification	Unit	X5746
Table size	mm	460x1235
T-slots(NO./width/pitch)	mm	5/18/80
Table travel (X/Y/Z)	mm	900/650/450
Swivel angle of milling head		360°
Spindle taper		ISO40
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	58-508
Distance from spindle center line to column	mm	20-670
Main motor power	Kw	5.5
Feed motor	Kw	AC servo motor X/Y: 18NM; Z: 27NM
Max load	Kg	800
Overall size	mm	2570x2035x1990
weight	kg	3600

It can mill any angle surface through front half-sphere by swivelling milling head Table 3 axes with ball screws, high precision
Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
Mechanical change speeds in headstock, powerful milling
Table with an extra supporting column, big load, high accuracy
