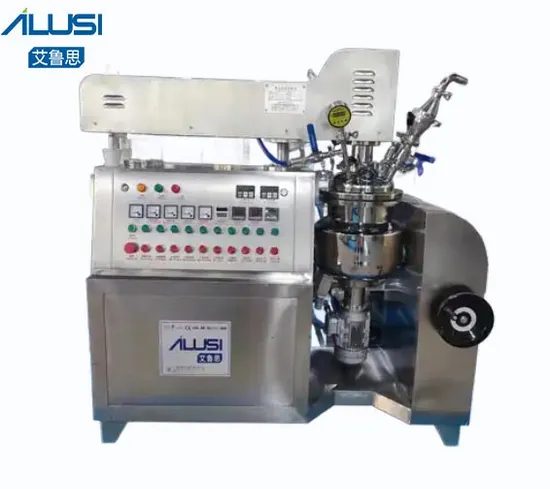

Electric Heating Lab Immersion High Shear Cream Emulsifier Homogenizer
| US$9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AVE-20
Application Area
Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Type
Dual Hydraulic
Warranty
1 year
Working
Shear Mixer
Working Capacity
5-20L
Full Volume
20L
Material
SUS316L&SUS304
Mixing Power
1.1kw
Mixing Speed
0-84rpm
Homogenizing Speed
0-2880rpm
Heating Method
Electric Heating
Structure
3 Tank (Emulsifying Tank, Water Tank, Oil Tank )
Voltage
220V/380V
Function
Mixer/Heating/Homogenzier
Water Pot Volume
20L
Oil Pot Volume
10L
Discharging Way
Bottom Side Valve, at The Same Plane with The Bot
Stirrer Paddle & Scraper Blade
Frame Wall Scrapping Mixing
Transport Package
Wood Packing
Specification
2500*1500*2200mm
Trademark
Ailusi
Origin
China
HS Code
8479820090
Production Capacity
45sets/Month
Product Description
Product DescriptionElectric Heating Lab Immersion High Shear Cream Emulsifier HomogenizerThe vacuum homogeneous emulsifier rotates at high speed through the homogenizing head connected to the engine to shear, disperse and impact the material in a vacuum state, quickly and evenly distribute one or more phases into another continuous phase. The strong kinetic energy of the mechanical force is used to make the material in the narrow gap between the stator and rotor, and withstand hundreds of thousands of hydraulic shears per minute, it is always subjected to centrifugal force, extrusion, impact, tearing and other comprehensive effects instantly and evenly. Disperse and emulsify the material to form a water-in-oil and oil-in-water state, and finally obtain a high-quality product without bubbles, delicate and stable.
Product Parameters
| No | Model | AVE-20 |
| 1 | Working capacity | 20L |
| 2 | Heating method | Steam/electric |
| 3 | Mixing type | Upper frame oar scrape mixer |
| 4 | Mixing motor power | 1.1KW |
| 5 | Mixing frequency | 1.1KW |
| 6 | Mixing Speed | 0-84rpm |
| 7 | Homogenizer | Bottom homogenizer with frequency inverter |
| 8 | Bottom Homogenizer power | 2.2KW |
| 9 | Speed | 0-2880rpm |
| 10 | Hydraulic lifting system | 0.55KW |
| 11 | Vacuum pump | Water cycle vacuum pump, power: 0.75KW |
| 12 | Control method | Button control/ HMI |
| 13 | Frequency converter | Delta/Panasonic/Mitsubishi |
| 14 | Electrical components | Schneider/Delixi |
| 15 | Jacket | Double jacket,3 layers |
| 16 | Tank materials | Inner layer 4mm/SUS316 Middle layer 4mm/SUS304 Outer layer 2mm/SUS304 |
Main pot hydraulic lifting, three layers of stainless steel structure, can be manually tipped out. Equipped with material inlet, vacuum gauge, vacuum valve, view mirror, air filter, perfume hopper and so on.
Blender
Type: frame oar scrape blender,single way or double way rotating
Material: SUS316L
Speed:0-65rpmElectric control system
Electric control cabinet buttons control or PLC touch screen controller design.
adopt SUS304 Stainless steel plate, thickness:1.5mm
Frequency inverter Delta
Indicator light Schneider
Water & Oil heating
Water pot Working volume: 45L
Oil pot Working volume: 30L
Mixing speed: 1440rpm
Pre heating and mixing
